Welding end

Longitudinally welded pipes pieces. Designed to be welded onto a machine to start a dust extraction line.

Product range

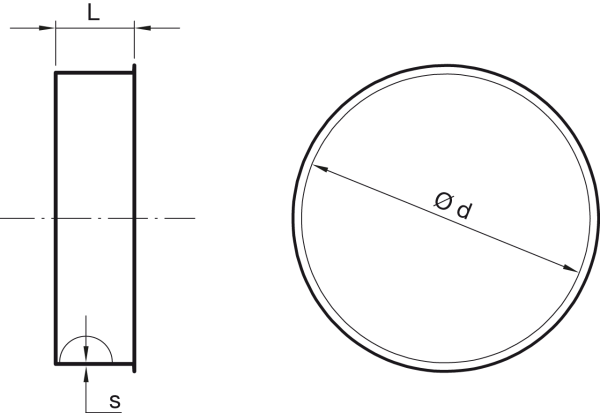

Diameter	Length	Thickness	Item ID	Edge	Edge 2
Ød, mm	L, mm	s, mm
80	55	2	BAZF000041	fb	gl
100	55	2	BAZF000042	fb	gl
120	55	2	BAZF000043	fb	gl
140	55	2	BAZF000044	fb	gl
150	55	2	BAZF000045	fb	gl
150	55	3	BAZF000062	fb	gl
160	55	2	BAZF000046	fb	gl
175	55	2	BAZF000047	fb	gl
175	55	3	BAZF000063	fb	gl
200	55	2	BAZF000048	fb	gl
200	55	3	BAZF000064	fb	gl
224	55	2	BAZF000049	fb	gl
224	55	3	BAZF000065	fb	gl
250	55	2	BAZF000050	fb	gl
250	55	3	BAZF000066	fb	gl
280	55	2	BAZF000051	fb	gl
280	55	3	BAZF000067	fb	gl
300	55	2	BAZF000052	fb	gl
300	55	3	BAZF000068	fb	gl
315	55	2	BAZF000053	fb	gl
315	55	3	BAZF000069	fb	gl
350	55	2	BAZF000054	fb	gl
350	55	3	BAZF000070	fb	gl
400	55	2	BAZF000055	fb	gl
400	55	3	BAZF000071	fb	gl
450	55	2	BAZF000056	fb	gl
450	55	3	BAZF000072	fb	gl
500	55	2	BAZF000057	fb	gl
500	55	3	BAZF000073	fb	gl
560	55	2	BAZF000059	fb	gl
560	55	3	BAZF000075	fb	gl
630	55	2	BAZF000061	fb	gl
630	55	3	BAZF000077	fb	gl

Price	Diameter	Length	Thickness	Item ID	Edge	Edge 2
€	Ød, mm	L, mm	s, mm
€10.90	80	55	2.00	BAZF000001	fb	gl
€11.00	100	55	2.00	BAZF000002	fb	gl
€12.10	120	55	2.00	BAZF000003	fb	gl
€12.70	125	55	2.00	BAZF000040	fb	gl
€13.70	140	55	2.00	BAZF000004	fb	gl
€13.70	150	55	2.00	BAZF000005	fb	gl
€17.90	150	55	3.00	BAZF000024	fb	gl
€14.50	160	55	2.00	BAZF000006	fb	gl
€14.50	175	55	2.00	BAZF000007	fb	gl
€19.90	175	55	3.00	BAZF000025	fb	gl
€14.20	180	55	2.00	BAZF000008	fb	gl
€15.40	200	55	2.00	BAZF000009	fb	gl
€20.80	200	55	3.00	BAZF000026	fb	gl
€16.00	224	55	2.00	BAZF000010	fb	gl
€21.80	224	55	3.00	BAZF000027	fb	gl
€16.00	250	55	2.00	BAZF000011	fb	gl
€21.80	250	55	3.00	BAZF000028	fb	gl
€18.50	275	55	2.00	BAZF000012	fb	gl
€19.50	280	55	2.00	BAZF000013	fb	gl
€25.00	280	55	3.00	BAZF000029	fb	gl
€19.50	300	55	2.00	BAZF000014	fb	gl
€25.00	300	55	3.00	BAZF000030	fb	gl
€20.20	315	55	2.00	BAZF000015	fb	gl
€27.10	315	55	3.00	BAZF000031	fb	gl
€20.20	350	55	2.00	BAZF000016	fb	gl
€27.10	350	55	3.00	BAZF000032	fb	gl
€22.60	400	55	2.00	BAZF000017	fb	gl
€29.60	400	55	3.00	BAZF000033	fb	gl
€25.70	450	55	2.00	BAZF000018	fb	gl
€35.10	450	55	3.00	BAZF000034	fb	gl
€29.40	500	55	2.00	BAZF000019	fb	gl
€37.90	500	55	3.00	BAZF000035	fb	gl
€32.10	550	55	2.00	BAZF000020	fb	gl
€33.80	560	55	2.00	BAZF000021	fb	gl
€43.70	560	55	3.00	BAZF000037	fb	gl
€34.50	600	55	2.00	BAZF000022	fb	gl
€37.60	630	55	2.00	BAZF000023	fb	gl
€49.60	630	55	3.00	BAZF000039	fb	gl

Price	Diameter	Length	Thickness	Item ID	Edge	Edge 2
€	Ød, mm	L, mm	s, mm
€18.30	80	55	2.00	BBZF000001	fb	gl
€18.90	100	55	2.00	BBZF000002	fb	gl
€20.00	120	55	2.00	BBZF000003	fb	gl
€22.90	140	55	2.00	BBZF000004	fb	gl
€22.90	150	55	2.00	BBZF000005	fb	gl
€26.10	160	55	2.00	BBZF000006	fb	gl
€26.10	175	55	2.00	BBZF000007	fb	gl
€29.00	200	55	2.00	BBZF000008	fb	gl
€33.00	224	55	2.00	BBZF000009	fb	gl
€33.00	250	55	2.00	BBZF000010	fb	gl
€37.60	280	55	2.00	BBZF000011	fb	gl
€37.60	300	55	2.00	BBZF000012	fb	gl
€39.30	315	55	2.00	BBZF000013	fb	gl
€39.30	350	55	2.00	BBZF000014	fb	gl
€43.50	400	55	2.00	BBZF000015	fb	gl
€53.80	450	55	2.00	BBZF000016	fb	gl
€60.10	500	55	2.00	BBZF000017	fb	gl
€70.20	560	55	2.00	BBZF000019	fb	gl
€78.40	630	55	2.00	BBZF000021	fb	gl
