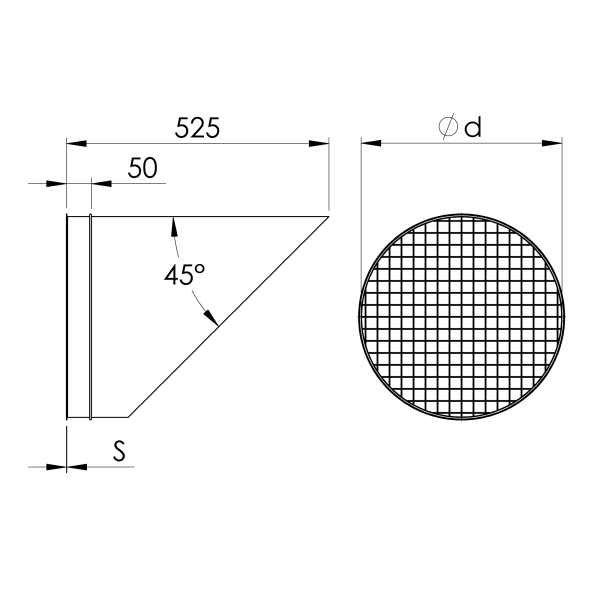

Wall outlets are standard welded with a stitch-welder and integrated bird screen.Designed for horizontal mounting. Other mounting orientations are possible with bends.
| Diameter | Length | Thickness | Item ID | Edge |
|---|---|---|---|---|
| Ød, mm | L, mm | s, mm | ||
| 100 | 240 | 0.88 | AAGE000001 | fb |
| 120 | 260 | 0.88 | AAGE000002 | fb |
| 125 | 260 | 0.88 | AAGE000028 | fb |
| 140 | 280 | 0.88 | AAGE000003 | fb |
| 150 | 290 | 0.88 | AAGE000004 | fb |
| 160 | 300 | 0.88 | AAGE000005 | fb |
| 180 | 320 | 0.88 | AAGE000006 | fb |
| 200 | 340 | 0.88 | AAGE000007 | fb |
| 225 | 370 | 0.88 | AAGE000008 | fb |
| 250 | 375 | 0.88 | AAGE000009 | fb |
| 275 | 400 | 0.88 | AAGE000010 | fb |
| 280 | 400 | 0.88 | AAGE000029 | fb |
| 300 | 425 | 0.88 | AAGE000011 | fb |
| 315 | 440 | 0.88 | AAGE000012 | fb |
| 350 | 475 | 0.88 | AAGE000013 | fb |
| 400 | 525 | 0.88 | AAGE000014 | fb |
| 450 | 575 | 0.88 | AAGE000015 | fb |
| 500 | 625 | 0.88 | AAGE000016 | fb |
| 550 | 675 | 0.88 | AAGE000017 | fb |
| 600 | 725 | 0.88 | AAGE000018 | fb |
| 630 | 755 | 0.88 | AAGE000019 | fb |
| 650 | 775 | 0.88 | AAGE000020 | fb |
| 700 | 825 | 0.88 | AAGE000030 | fb |
| 750 | 875 | 0.88 | AAGE000031 | fb |
| 800 | 925 | 0.88 | AAGE000032 | fb |
| 850 | 975 | 0.88 | AAGE000033 | fb |
| 900 | 1,025 | 0.88 | AAGE000034 | fb |
| 950 | 1,075 | 0.88 | AAGE000035 | fb |
| 1,000 | 1,125 | 0.88 | AAGE000036 | fb |
| 700 | 825 | 0.88 | AAGE000021 | L.fl |
| 750 | 875 | 0.88 | AAGE000022 | L.fl |
| 800 | 925 | 0.88 | AAGE000023 | L.fl |
| 850 | 975 | 0.88 | AAGE000024 | L.fl |
| 900 | 1,025 | 0.88 | AAGE000025 | L.fl |
| 950 | 1,075 | 0.88 | AAGE000026 | L.fl |
| 1,000 | 1,125 | 0.88 | AAGE000027 | L.fl |
| Price | Diameter | Length | Thickness | Item ID | Edge |
|---|---|---|---|---|---|
| € | Ød, mm | L, mm | s, mm | ||
| €116.70 | 80 | 220 | 0.80 | ABGE000001 | fb |
| €117.30 | 100 | 240 | 0.80 | ABGE000002 | fb |
| €117.30 | 120 | 260 | 0.80 | ABGE000003 | fb |
| €126.30 | 125 | 260 | 0.80 | ABGE000018 | fb |
| €135.30 | 140 | 280 | 0.80 | ABGE000004 | fb |
| €142.30 | 150 | 290 | 0.80 | ABGE000005 | fb |
| €148.00 | 160 | 300 | 0.80 | ABGE000006 | fb |
| €153.00 | 180 | 320 | 0.80 | ABGE000007 | fb |
| €153.00 | 200 | 340 | 0.80 | ABGE000008 | fb |
| €178.50 | 225 | 370 | 0.80 | ABGE000009 | fb |
| €178.50 | 250 | 375 | 0.80 | ABGE000010 | fb |
| €190.10 | 275 | 400 | 0.80 | ABGE000011 | fb |
| €191.10 | 280 | 400 | 0.80 | ABGE000019 | fb |
| €192.20 | 300 | 425 | 0.80 | ABGE000012 | fb |
| €195.10 | 315 | 440 | 0.80 | ABGE000013 | fb |
| €214.10 | 350 | 475 | 0.80 | ABGE000014 | fb |
| €233.20 | 400 | 525 | 0.80 | ABGE000015 | fb |
| €285.50 | 450 | 575 | 0.80 | ABGE000016 | fb |
| €333.10 | 500 | 625 | 0.80 | ABGE000017 | fb |
Galva / Untreated
AISI 304 / Untreated
