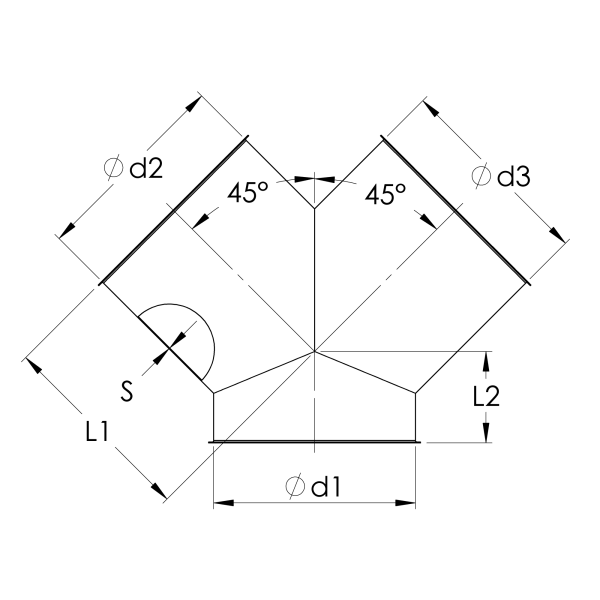

Trouser 45°

Trousers are longitudinally stitch-welded pipe pieces spot-welded together for use in overpressure, under-pressure and pressureless systems.

Product range

Diameter	Diameter 2	Diameter 3	Length	Thickness	Item ID	Edge
Ød, mm	Ød, mm	Ød, mm	L, mm	s, mm
80	80	80	140	0.88	AACE000001	fb
100	100	100	150	0.88	AACE000002	fb
120	120	120	160	0.88	AACE000003	fb
125	125	125	160	0.88	AACE000029	fb
140	140	140	170	0.88	AACE000004	fb
150	150	150	175	0.88	AACE000005	fb
160	160	160	180	0.88	AACE000006	fb
180	180	180	190	0.88	AACE000007	fb
200	200	200	200	0.88	AACE000008	fb
225	225	225	213	0.88	AACE000009	fb
250	250	250	225	0.88	AACE000010	fb
275	275	275	238	0.88	AACE000011	fb
280	280	280	238	0.88	AACE000030	fb
300	300	300	250	0.88	AACE000012	fb
315	315	315	258	0.88	AACE000013	fb
350	350	350	275	0.88	AACE000014	fb
400	400	400	300	0.88	AACE000015	fb
450	450	450	325	0.88	AACE000016	fb
500	500	500	350	0.88	AACE000017	fb
550	550	550	375	0.88	AACE000018	fb
600	600	600	400	0.88	AACE000019	fb
630	630	630	415	0.88	AACE000020	fb
650	650	650	425	0.88	AACE000021	fb
700	700	700	450	0.88	AACE000031	fb
750	750	750	475	0.88	AACE000032	fb
800	800	800	500	0.88	AACE000033	fb
850	850	850	525	0.88	AACE000034	fb
900	900	900	550	0.88	AACE000035	fb
950	950	950	575	0.88	AACE000036	fb
1,000	1,000	1,000	600	0.88	AACE000037	fb
700	700	700	450	0.88	AACE000022	L.fl
750	750	750	475	0.88	AACE000023	L.fl
800	800	800	500	0.88	AACE000024	L.fl
850	850	850	525	0.88	AACE000025	L.fl
900	900	900	550	0.88	AACE000026	L.fl
950	950	950	575	0.88	AACE000027	L.fl
1,000	1,000	1,000	600	0.88	AACE000028	L.fl

Price	Diameter	Diameter 2	Diameter 3	Length	Thickness	Item ID	Edge
€	Ød, mm	Ød, mm	Ød, mm	L, mm	s, mm
€136.50	80	80	80	17	0.80	ABCE000001	fb
€136.50	100	100	100	21	0.80	ABCE000002	fb
€136.50	120	120	120	25	0.80	ABCE000003	fb
€136.50	125	125	125	25	0.80	ABCE000004	fb
€136.50	140	140	140	29	0.80	ABCE000005	fb
€146.30	150	150	150	31	0.80	ABCE000006	fb
€154.00	160	160	160	33	0.80	ABCE000007	fb
€164.30	180	180	180	37	0.80	ABCE000008	fb
€185.00	200	200	200	41	0.80	ABCE000009	fb
€205.00	225	225	225	47	0.80	ABCE000010	fb
€225.00	250	250	250	52	0.80	ABCE000011	fb
€295.00	275	275	275	57	0.80	ABCE000012	fb
€295.00	280	280	280	57	0.80	ABCE000013	fb
€300.90	300	300	300	62	0.80	ABCE000014	fb
€310.50	315	315	315	65	0.80	ABCE000015	fb
€348.60	350	350	350	72	0.80	ABCE000016	fb
€415.00	400	400	400	83	0.80	ABCE000017	fb
€525.00	450	450	450	93	0.80	ABCE000018	fb
€605.00	500	500	500	104	0.80	ABCE000019	fb
