The transition pieces are produced from bent sheets spotwelded longitudinally. They are designed for a smooth transition between round and rectangular ducting elements for use in overpressure, under-pressure and pressureless systems.

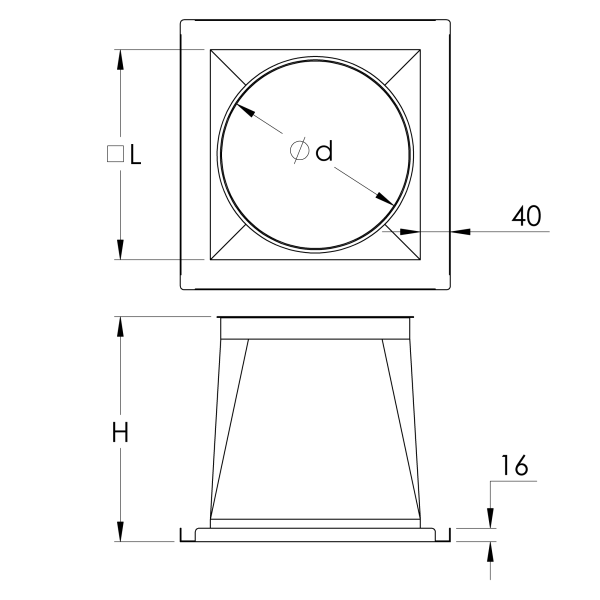

| Diameter | Length | Height | Thickness | Item ID | Edge |
|---|---|---|---|---|---|
| Ød, mm | L, mm | h, mm | s, mm | ||
| 80 | 100 | 330 | 0.88 | AAEB000001 | fbb |
| 100 | 120 | 330 | 0.88 | AAEB000002 | fbb |
| 120 | 140 | 330 | 0.88 | AAEB000003 | fbb |
| 125 | 145 | 330 | 0.88 | AAEB000004 | fbb |
| 140 | 160 | 330 | 0.88 | AAEB000005 | fbb |
| 150 | 180 | 335 | 0.88 | AAEB000006 | fbb |
| 160 | 190 | 335 | 0.88 | AAEB000007 | fbb |
| 180 | 210 | 335 | 0.88 | AAEB000008 | fbb |
| 200 | 250 | 345 | 0.88 | AAEB000009 | fbb |
| 225 | 275 | 345 | 0.88 | AAEB000010 | fbb |
| 250 | 300 | 345 | 0.88 | AAEB000011 | fbb |
| 275 | 325 | 345 | 0.88 | AAEB000012 | fbb |
| 280 | 330 | 345 | 0.88 | AAEB000013 | fbb |
| 300 | 350 | 345 | 0.88 | AAEB000014 | fbb |
| 315 | 365 | 345 | 0.88 | AAEB000015 | fbb |
| 350 | 400 | 345 | 0.88 | AAEB000016 | fbb |
| 400 | 450 | 345 | 0.88 | AAEB000017 | fbb |
| 450 | 500 | 345 | 0.88 | AAEB000018 | fbb |
| 500 | 550 | 345 | 0.88 | AAEB000019 | fbb |
| 550 | 600 | 345 | 0.88 | AAEB000020 | fbb |
| 600 | 650 | 345 | 0.88 | AAEB000021 | fbb |
| 630 | 680 | 345 | 0.88 | AAEB000022 | fbb |
| 650 | 700 | 345 | 0.88 | AAEB000023 | fbb |
| 700 | 750 | 345 | 0.88 | AAEB000024 | fbb |
| 750 | 800 | 345 | 0.88 | AAEB000025 | fbb |
| 800 | 850 | 345 | 0.88 | AAEB000026 | fbb |
| 850 | 900 | 345 | 0.88 | AAEB000027 | fbb |
| 900 | 950 | 345 | 0.88 | AAEB000028 | fbb |
| 950 | 1,000 | 345 | 0.88 | AAEB000029 | fbb |
| 1,000 | 1,050 | 345 | 0.88 | AAEB000030 | fbb |
| Price | Diameter | Length | Height | Thickness | Item ID | Edge |
|---|---|---|---|---|---|---|
| € | Ød, mm | L, mm | h, mm | s, mm | ||
| €201.00 | 80 | 100 | 330 | 0.80 | ABEB000001 | fbb |
| €204.50 | 100 | 120 | 330 | 0.80 | ABEB000002 | fbb |
| €227.10 | 120 | 140 | 330 | 0.80 | ABEB000003 | fbb |
| €227.10 | 125 | 145 | 330 | 0.80 | ABEB000004 | fbb |
| €246.50 | 140 | 160 | 330 | 0.80 | ABEB000005 | fbb |
| €246.50 | 150 | 180 | 335 | 0.80 | ABEB000006 | fbb |
| €258.10 | 160 | 190 | 335 | 0.80 | ABEB000007 | fbb |
| €279.00 | 180 | 210 | 335 | 0.80 | ABEB000008 | fbb |
| €320.40 | 200 | 250 | 345 | 0.80 | ABEB000009 | fbb |
| €339.30 | 225 | 275 | 345 | 0.80 | ABEB000010 | fbb |
| €440.70 | 250 | 300 | 345 | 0.80 | ABEB000011 | fbb |
| €463.90 | 275 | 325 | 345 | 0.80 | ABEB000012 | fbb |
| €562.50 | 280 | 330 | 345 | 0.80 | ABEB000013 | fbb |
| €642.20 | 300 | 350 | 345 | 0.80 | ABEB000014 | fbb |
| €669.10 | 315 | 365 | 345 | 0.80 | ABEB000015 | fbb |
| €395.90 | 350 | 400 | 345 | 0.80 | ABEB000016 | fbb |
| €843.80 | 400 | 450 | 345 | 0.80 | ABEB000017 | fbb |
| €1,113.40 | 450 | 500 | 345 | 0.80 | ABEB000018 | fbb |
| €1,174.30 | 500 | 550 | 345 | 0.80 | ABEB000019 | fbb |
Galva / Untreated
AISI 304 / Untreated
