Storm collar

The storm collars are used in combination with roof passages (AAGD) ensure a waterproof passage of a pipe through the roof of a building.The storm collars consist of 2 parts lined with a rubber sealing for better tightness around the pipe.

Product range

DiameterDiameter 2HeightThicknessItem ID
Ød, mmØd, mmh, mms, mm
802431100.88AAGA000028
1002631100.88AAGA000029
1202831100.88AAGA000030
1252881100.88AAGA000027
1403031100.88AAGA000001
1503131100.88AAGA000002
1603231100.88AAGA000003
1803431100.88AAGA000004
2003631100.88AAGA000005
2253881100.88AAGA000006
2504131100.88AAGA000007
2754381100.88AAGA000008
2804431100.88AAGA000026
3004631100.88AAGA000009
3154781100.88AAGA000010
3505131100.88AAGA000011
4005601100.88AAGA000012
4506131100.88AAGA000013
5006631100.88AAGA000014
5507131100.88AAGA000015
6007631100.88AAGA000016
6307931100.88AAGA000017
6508131100.88AAGA000018
7008631100.88AAGA000019
7509131100.88AAGA000020
8009631100.88AAGA000021
8501,0131100.88AAGA000022
9001,0631100.88AAGA000023
9501,1131100.88AAGA000024
1,0001,1631100.88AAGA000025
PriceDiameterDiameter 2HeightThicknessItem ID
€Ød, mmØd, mmh, mms, mm
€116.90802430.80ABGA000019
€116.901002630.80ABGA000020
€116.901202830.80ABGA000021
€120.701252880.80ABGA000022
€120.701403030.80ABGA000023
€120.701503130.80ABGA000024
€124.201603230.80ABGA000025
€124.201803430.80ABGA000026
€124.202003630.80ABGA000027
€167.502253880.80ABGA000028
€167.502504130.80ABGA000029
€176.502754380.80ABGA000030
€181.002804430.80ABGA000031
€185.503004630.80ABGA000032
€190.103154780.80ABGA000033
€203.703505130.80ABGA000034
€221.804005600.80ABGA000035
€239.904506130.80ABGA000036
€262.505006630.80ABGA000037
photo-Storm20collar_7025

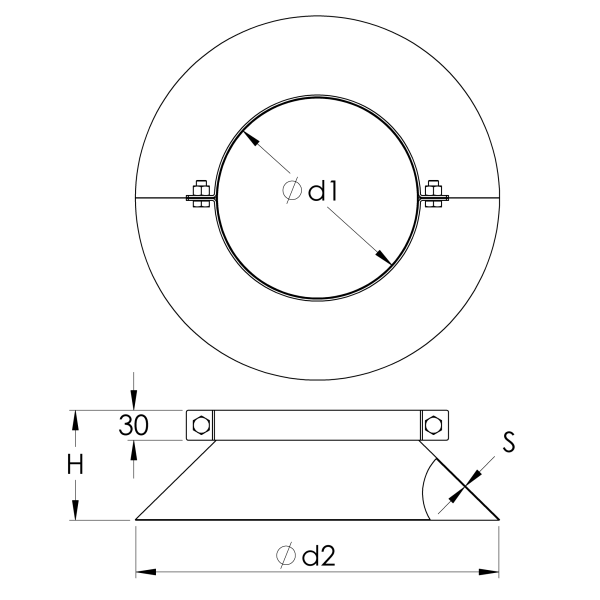

drawing-Storm20collar
drawing
