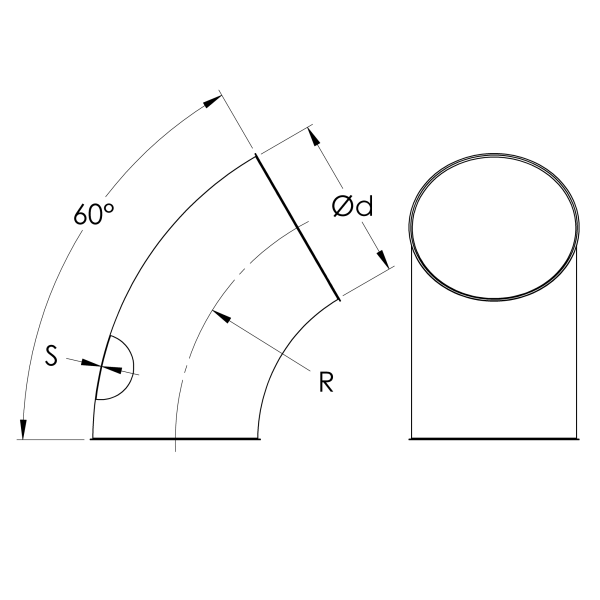

The pressed bends are made of two preformed halves which are longitudinally spot-welded together for use in underpressure and pressureless systems.
The segmented bends are composed of stitch-welded segments that are lock-formed together for use in underpressure and pressureless systems. As of diameter Ø 225 mm and larger, the intermediate segments are 15°. Recommended use in underpressure installations.
These bends are suitable for the transport of waste materials such as dust and chips but also for the transport of grains and such.
| Diameter | Radius | Thickness | Item ID | Edge | Segments |
|---|---|---|---|---|---|
| Ød, mm | R, mm | s, mm | |||
| 80 | R=1,5D | 1 | AABA000029 | fb | |
| 100 | R=1,5D | 1 | AABA000030 | fb | |
| 120 | R=1,5D | 1 | AABA000031 | fb | |
| 125 | R=1,5D | 1 | AABA000143 | fb | |
| 140 | R=1,5D | 1 | AABA000032 | fb | |
| 150 | R=1,5D | 1 | AABA000033 | fb | |
| 160 | R=1,5D | 1 | AABA000034 | fb | |
| 180 | R=1,5D | 1 | AABA000035 | fb | |
| 200 | R=1,5D | 1 | AABA000036 | fb | |
| 225 | R=1,5D | 1 | AABA000037 | fb | |
| 250 | R=1,5D | 1 | AABA000038 | fb | |
| 275 | R=1,5D | 1 | AABA000039 | fb | |
| 280 | R=1,5D | 0.88 | AABA000144 | fb | 4 |
| 300 | R=1,5D | 1 | AABA000040 | fb | |
| 315 | R=1,5D | 0.88 | AABA000041 | fb | 4 |
| 350 | R=1,5D | 0.88 | AABA000042 | fb | 4 |
| 400 | R=1,5D | 0.88 | AABA000043 | fb | 4 |
| 450 | R=1,5D | 0.88 | AABA000044 | fb | 5 |
| 500 | R=1,5D | 0.88 | AABA000045 | fb | 5 |
| 550 | R=1,5D | 0.88 | AABA000046 | fb | 5 |
| 600 | R=1,5D | 0.88 | AABA000047 | fb | 5 |
| 630 | R=1,5D | 0.88 | AABA000048 | fb | 5 |
| 650 | R=1,5D | 0.88 | AABA000049 | fb | 5 |
| 700 | R=1,5D | 0.88 | AABA000158 | fb | 5 |
| 750 | R=1,5D | 0.88 | AABA000159 | fb | 5 |
| 800 | R=1,5D | 0.88 | AABA000160 | fb | 5 |
| 850 | R=1,5D | 0.88 | AABA000161 | fb | 5 |
| 900 | R=1,5D | 0.88 | AABA000162 | fb | 5 |
| 950 | R=1,5D | 0.88 | AABA000163 | fb | 5 |
| 1,000 | R=1,5D | 1 | AABA000164 | fb | 5 |
| 315 | R=1,5D | 0.88 | AABA000195 | L.fl | 4 |
| 350 | R=1,5D | 0.88 | AABA000196 | L.fl | 4 |
| 400 | R=1,5D | 0.88 | AABA000197 | L.fl | 4 |
| 450 | R=1,5D | 0.88 | AABA000198 | L.fl | 5 |
| 500 | R=1,5D | 0.88 | AABA000199 | L.fl | 5 |
| 550 | R=1,5D | 0.88 | AABA000200 | L.fl | 5 |
| 600 | R=1,5D | 0.88 | AABA000201 | L.fl | 5 |
| 630 | R=1,5D | 0.88 | AABA000202 | L.fl | 5 |
| 650 | R=1,5D | 0.88 | AABA000203 | L.fl | 5 |
| 700 | R=1,5D | 0.88 | AABA000050 | L.fl | 5 |
| 750 | R=1,5D | 0.88 | AABA000051 | L.fl | 5 |
| 800 | R=1,5D | 0.88 | AABA000052 | L.fl | 5 |
| 850 | R=1,5D | 0.88 | AABA000053 | L.fl | 5 |
| 900 | R=1,5D | 0.88 | AABA000054 | L.fl | 5 |
| 950 | R=1,5D | 0.88 | AABA000055 | L.fl | 5 |
| 1,000 | R=1,5D | 1 | AABA000056 | L.fl | 5 |
| Price | Diameter | Radius | Thickness | Item ID | Edge | Segments |
|---|---|---|---|---|---|---|
| € | Ød, mm | R, mm | s, mm | |||
| €28.10 | 80 | R=1,5D | 0.80 | ABBA000089 | fb | |
| €35.50 | 100 | R=1,5D | 0.80 | ABBA000090 | fb | |
| €43.60 | 120 | R=1,5D | 0.80 | ABBA000018 | fb | |
| €66.90 | 140 | R=1,5D | 0.60 | ABBA000019 | fb | 4 |
| €74.30 | 150 | R=1,5D | 0.60 | ABBA000020 | fb | 4 |
| €81.70 | 160 | R=1,5D | 0.60 | ABBA000021 | fb | 4 |
| €92.50 | 180 | R=1,5D | 0.60 | ABBA000022 | fb | 4 |
| €112.20 | 200 | R=1,5D | 0.60 | ABBA000023 | fb | 4 |
| €132.10 | 225 | R=1,5D | 0.60 | ABBA000024 | fb | 4 |
| €178.30 | 250 | R=1,5D | 0.60 | ABBA000025 | fb | 4 |
| €211.30 | 275 | R=1,5D | 0.80 | ABBA000026 | fb | 4 |
| €211.30 | 280 | R=1,5D | 0.80 | ABBA000083 | fb | 4 |
| €211.30 | 300 | R=1,5D | 0.80 | ABBA000027 | fb | 4 |
| €224.50 | 315 | R=1,5D | 0.80 | ABBA000028 | fb | 4 |
| €270.80 | 350 | R=1,5D | 0.80 | ABBA000029 | fb | 4 |
| €349.90 | 400 | R=1,5D | 0.80 | ABBA000030 | fb | 4 |
| €442.40 | 450 | R=1,5D | 0.80 | ABBA000031 | fb | 5 |
| €561.20 | 500 | R=1,5D | 0.80 | ABBA000032 | fb | 5 |
Galva / Untreated
AISI 304 / Untreated
