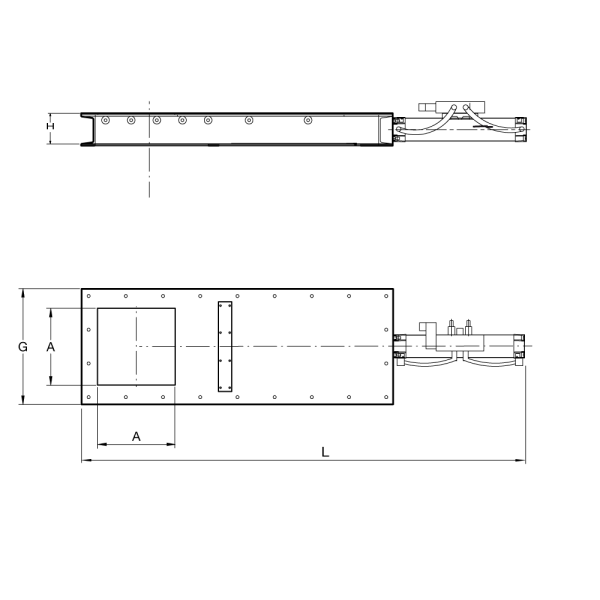

Full welded pneumatic silo outlet gates to discharge material from a cyclone, a silo, or such. The outlet gate blade is secured in an open or closed position by means of the linear cylinder foreseen with limit switches and controlled by 5/2 monostable solenoid valve 24 V DC.
With transition.
| Diameter | Length | Item ID | Edge |
|---|---|---|---|
| Ød, mm | L, mm | ||
| 150 | 301 | BADQ000001 | fb |
| 175 | 301 | BADQ000002 | fb |
| 200 | 301 | BADQ000003 | fb |
| 250 | 350 | BADQ000004 | fb |
| 300 | 332 | BADQ000005 | fb |
| Price | Diameter | Length | Item ID | Edge |
|---|---|---|---|---|
| € | Ød, mm | L, mm | ||
| €3,676.70 | 150 | 301 | BDDQ000001 | fb |
| €3,819.00 | 175 | 301 | BDDQ000002 | fb |
| €3,899.70 | 200 | 301 | BDDQ000003 | fb |
| €4,063.00 | 250 | 350 | BDDQ000004 | fb |
| €4,478.20 | 300 | 332 | BDDQ000005 | fb |
| Price | Diameter | Length | Item ID | Edge |
|---|---|---|---|---|
| € | Ød, mm | L, mm | ||
| €4,745.30 | 150 | 301 | BBDQ000001 | fb |
| €4,916.30 | 175 | 301 | BBDQ000002 | fb |
| €5,010.50 | 200 | 301 | BBDQ000003 | fb |
| €5,227.70 | 250 | 350 | BBDQ000004 | fb |
| €5,800.50 | 300 | 332 | BBDQ000005 | fb |
Black steel / Painted
Black steel / Hot-dipped
AISI 304 / Chronital blasted
