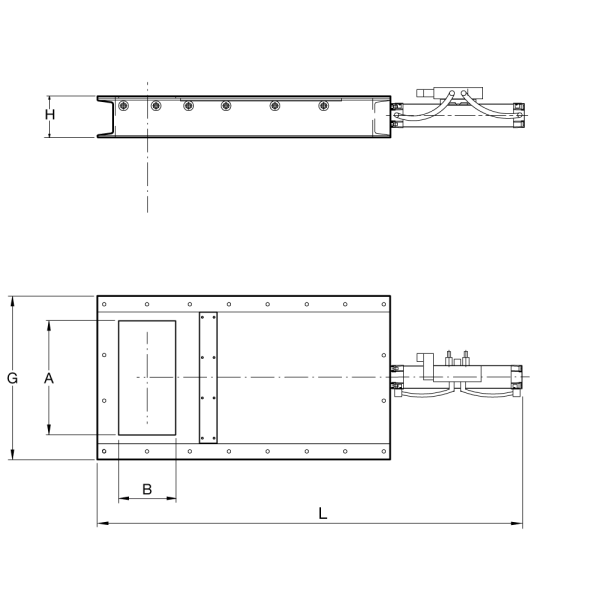

Full welded pneumatic Redler outlet gates to discharge material from a cyclone, a silo, or such. The gate blade is mounted on roller bearings and the base frame is 5 mm thick.
The outlet gate blade is secured in an open or closed position by means of the linear cylinder foreseen with limit switches and controlled by 5/2 monostable solenoid valve 24 V DC.
| Diameter | Length | Item ID |
|---|---|---|
| Ød, mm | L, mm | |
| 150 | 126 | BADS000006 |
| 175 | 126 | BADS000007 |
| 200 | 126 | BADS000008 |
| 250 | 126 | BADS000009 |
| 300 | 126 | BADS000010 |
| Price | Diameter | Length | Item ID |
|---|---|---|---|
| € | Ød, mm | L, mm | |
| €3,530.70 | 150 | 126 | BDDS000006 |
| €3,613.30 | 175 | 126 | BDDS000007 |
| €3,678.70 | 200 | 126 | BDDS000008 |
| €3,805.50 | 250 | 126 | BDDS000009 |
| €4,009.30 | 300 | 126 | BDDS000010 |
| Price | Diameter | Length | Item ID |
|---|---|---|---|
| € | Ød, mm | L, mm | |
| €4,564.70 | 150 | 126 | BBDS000006 |
| €4,664.60 | 175 | 126 | BBDS000007 |
| €4,720.30 | 200 | 126 | BBDS000008 |
| €4,883.70 | 250 | 126 | BBDS000009 |
| €5,106.70 | 300 | 126 | BBDS000010 |
Black steel / Painted
Black steel / Hot-dipped
AISI 304 / Chronital blasted
