Manual throttle valve

Name: Manual throttle valve - Formula Air
SKU: AADJ029

Longitudinally stitch-welded throttle valves for use in overpressure, under-pressure and pressureless systems.

The throttle valves have a regulating handle with star-knob to secure the blade in a fixed position.

Product range

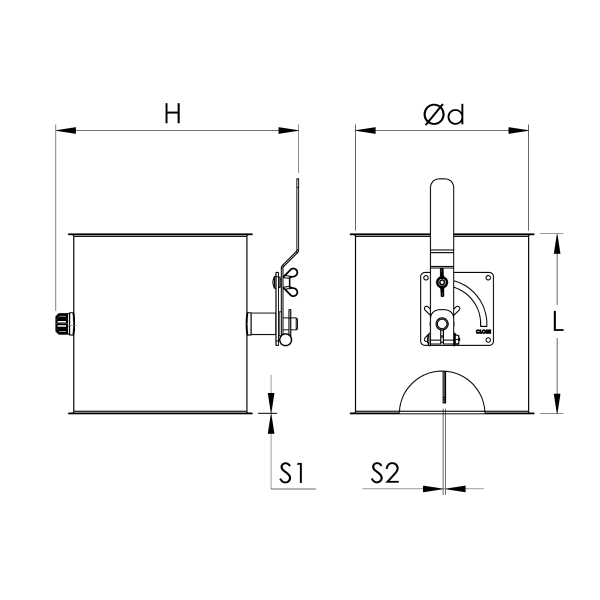

Diameter	Length	Height	Thickness	Item ID	Edge
Ød, mm	L, mm	h, mm	s, mm
80	95	162	0.88	AADJ000001	fb
100	115	182	0.88	AADJ000002	fb
120	135	202	0.88	AADJ000003	fb
125	140	202	0.88	AADJ000040	fb
140	155	222	0.88	AADJ000004	fb
150	165	232	0.88	AADJ000005	fb
160	175	242	0.88	AADJ000006	fb
180	195	262	0.88	AADJ000007	fb
200	215	282	0.88	AADJ000008	fb
225	240	307	0.88	AADJ000009	fb
250	265	332	0.88	AADJ000010	fb
275	290	357	0.88	AADJ000011	fb
280	295	357	0.88	AADJ000041	fb
300	315	382	0.88	AADJ000012	fb
315	330	397	0.88	AADJ000013	fb
350	365	432	0.88	AADJ000014	fb
400	415	482	0.88	AADJ000015	fb
450	465	552	1.25	AADJ000016	fb
500	515	602	1.25	AADJ000017	fb
550	565	652	1.25	AADJ000018	fb
600	615	702	1.25	AADJ000019	fb
630	645	732	1.25	AADJ000020	fb
650	665	752	1.25	AADJ000021	fb
700	715	802	1.25	AADJ000042	fb
750	765	852	1.25	AADJ000043	fb
800	815	902	1.25	AADJ000044	fb
700	715	802	1.25	AADJ000022	L.fl
750	765	852	1.25	AADJ000023	L.fl
800	815	902	1.25	AADJ000024	L.fl

Price	Diameter	Length	Height	Thickness	Item ID	Edge
€	Ød, mm	L, mm	h, mm	s, mm
€133.30	80	162	95	0.80	ABDJ000001	fb
€138.70	100	182	115	0.80	ABDJ000002	fb
€151.90	120	202	135	0.80	ABDJ000003	fb
€151.90	125	202	140	0.80	ABDJ000004	fb
€179.60	140	222	155	0.80	ABDJ000005	fb
€184.20	150	232	165	0.80	ABDJ000006	fb
€189.50	160	242	175	0.80	ABDJ000007	fb
€235.70	180	262	195	0.80	ABDJ000008	fb
€224.10	200	282	215	0.80	ABDJ000009	fb
€247.80	225	307	240	0.80	ABDJ000010	fb
€259.70	250	332	265	0.80	ABDJ000011	fb
€282.90	275	357	290	0.80	ABDJ000012	fb
€282.90	280	357	295	0.80	ABDJ000013	fb
€307.20	300	382	315	0.80	ABDJ000014	fb
€325.70	315	397	330	0.80	ABDJ000015	fb
€372.00	350	432	365	0.80	ABDJ000016	fb
€433.80	400	482	415	0.80	ABDJ000017	fb
€468.80	450	532	465	0.80	ABDJ000018	fb
€517.00	500	582	515	0.80	ABDJ000019	fb
