Manual diverter asymmetrical with flap seal 60°

Name: Manual diverter asymmetrical with flap seal 60° - Formula Air
SKU: BAHH144

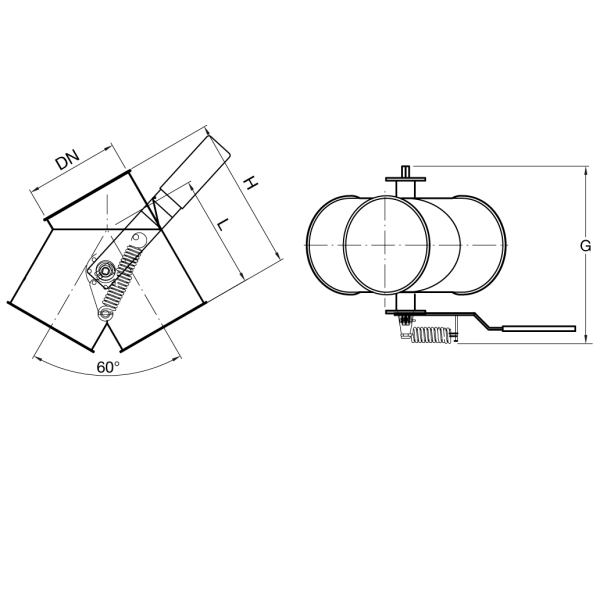

Full welded round manual branch diverter with interior collar for bulk transport to silos, containers and such.

The change in direction of the material is operated by moving the hand lever from left to right. It is held in position by the spring. The inner plate is mounted on two ball bearings for smooth running.

These diverters are designed to be used for falling material and light pneumatic transport (for example wood chips, polystyrene, etc.) in vertical ducting and exist with or without silicone seal in a right or left execution (to specify when ordering).

Product range

Diameter	Diameter 2	Diameter 3	Length	Thickness	Item ID	Edge	Execution
Ød, mm	Ød, mm	Ød, mm	L, mm	s, mm
100	100	100	226	2	BAHH000031	fb	Left
100	100	100	226	2	BAHH000047	fb	Right
120	120	120	273	2	BAHH000032	fb	Left
120	120	120	273	2	BAHH000048	fb	Right
150	150	150	321	2	BAHH000033	fb	Left
150	150	150	321	3	BAHH000040	fb	Left
150	150	150	321	2	BAHH000049	fb	Right
150	150	150	321	3	BAHH000056	fb	Right
175	175	175	367	2	BAHH000034	fb	Left
175	175	175	367	3	BAHH000041	fb	Left
175	175	175	367	2	BAHH000050	fb	Right
175	175	175	367	3	BAHH000057	fb	Right
200	200	200	412	2	BAHH000035	fb	Left
200	200	200	412	3	BAHH000042	fb	Left
200	200	200	412	2	BAHH000051	fb	Right
200	200	200	412	3	BAHH000058	fb	Right
250	250	250	501	2	BAHH000036	fb	Left
250	250	250	501	3	BAHH000043	fb	Left
250	250	250	501	2	BAHH000052	fb	Right
250	250	250	501	3	BAHH000059	fb	Right
300	300	300	590	2	BAHH000037	fb	Left
300	300	300	590	3	BAHH000044	fb	Left
300	300	300	590	2	BAHH000053	fb	Right
300	300	300	590	3	BAHH000060	fb	Right
350	350	350	705	2	BAHH000038	fb	Left
350	350	350	705	3	BAHH000045	fb	Left
350	350	350	705	2	BAHH000054	fb	Right
350	350	350	705	3	BAHH000061	fb	Right
400	400	400	850	2	BAHH000039	fb	Left
400	400	400	850	3	BAHH000046	fb	Left
400	400	400	850	2	BAHH000055	fb	Right
400	400	400	850	3	BAHH000062	fb	Right

Price	Diameter	Diameter 2	Diameter 3	Length	Thickness	Item ID	Edge	Execution
€	Ød, mm	Ød, mm	Ød, mm	L, mm	s, mm
€1,187.90	100	100	100	226	2.00	BDHH000019	fb	Left
€1,187.90	100	100	100	226	2.00	BDHH000028	fb	Right
€1,197.50	120	120	120	273	2.00	BDHH000020	fb	Left
€1,197.50	120	120	120	273	2.00	BDHH000029	fb	Right
€1,253.20	150	150	150	321	2.00	BDHH000021	fb	Left
€1,253.20	150	150	150	321	2.00	BDHH000030	fb	Right
€1,414.60	175	175	175	367	2.00	BDHH000022	fb	Left
€1,414.60	175	175	175	367	2.00	BDHH000031	fb	Right
€1,447.30	200	200	200	412	2.00	BDHH000023	fb	Left
€1,447.30	200	200	200	412	2.00	BDHH000032	fb	Right
€1,520.30	250	250	250	501	2.00	BDHH000024	fb	Left
€1,520.30	250	250	250	501	2.00	BDHH000033	fb	Right
€1,825.90	300	300	300	590	2.00	BDHH000025	fb	Left
€1,825.90	300	300	300	590	2.00	BDHH000034	fb	Right

Price	Diameter	Diameter 2	Diameter 3	Length	Thickness	Item ID	Edge	Execution
€	Ød, mm	Ød, mm	Ød, mm	L, mm	s, mm
€1,078.30	100	100	100	226	2.00	BBHH000019	fb	Left
€1,078.30	100	100	100	226	2.00	BBHH000028	fb	Right
€1,078.30	120	120	120	273	2.00	BBHH000020	fb	Left
€1,078.30	120	120	120	273	2.00	BBHH000029	fb	Right
€1,314.70	150	150	150	321	2.00	BBHH000021	fb	Left
€1,314.70	150	150	150	321	2.00	BBHH000030	fb	Right
€1,777.90	175	175	175	367	2.00	BBHH000022	fb	Left
€1,777.90	175	175	175	367	2.00	BBHH000031	fb	Right
€1,777.90	200	200	200	412	2.00	BBHH000023	fb	Left
€1,777.90	200	200	200	412	2.00	BBHH000032	fb	Right
€2,189.10	250	250	250	501	2.00	BBHH000024	fb	Left
€2,189.10	250	250	250	501	2.00	BBHH000033	fb	Right
€2,550.50	300	300	300	590	2.00	BBHH000025	fb	Left
€2,550.50	300	300	300	590	2.00	BBHH000034	fb	Right
€2,977.20	350	350	350	705	2.00	BBHH000026	fb	Left
€2,977.20	350	350	350	705	2.00	BBHH000035	fb	Right
€3,401.90	400	400	400	850	2.00	BBHH000027	fb	Left
€3,401.90	400	400	400	850	2.00	BBHH000036	fb	Right
