Manual diverter asymmetrical 60°

Name: Manual diverter asymmetrical 60° - Formula Air
SKU: BAHH143

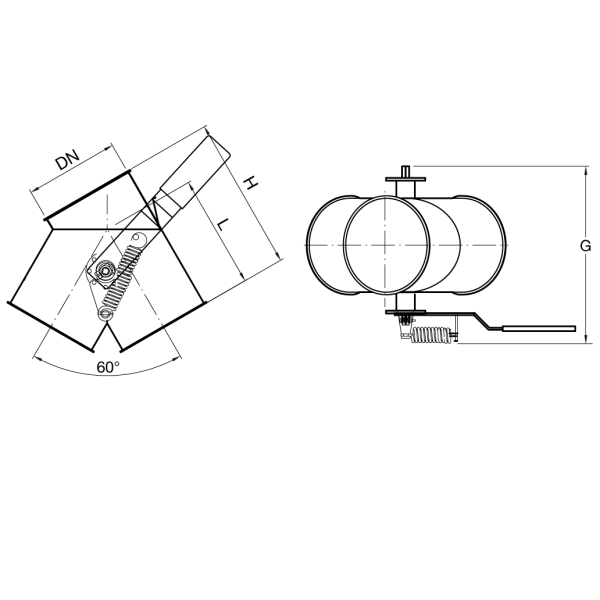

Full welded round manual branch diverter with interior collar for bulk transport to silos, containers and such. The change in direction of the material is operated by moving the hand lever from left to right. It is held in position by the spring. The inner plate is mounted on two ball bearings for smooth running.

These diverters are designed to be used for falling material and light pneumatic transport (for example wood chips, polystyrene, etc.) in vertical ducting and exist with or without silicone seal in a right or left execution (to specify when ordering).

Product range

Diameter	Diameter 2	Diameter 3	Length	Thickness	Item ID	Edge	Execution
Ød, mm	Ød, mm	Ød, mm	L, mm	s, mm
100	100	100	175	2	BAHH000002	fb	Right
100	100	100	175	2	BAHH000017	fb	Left
120	120	120	215	2	BAHH000003	fb	Right
120	120	120	215	2	BAHH000018	fb	Left
150	150	150	255	2	BAHH000004	fb	Right
150	150	150	255	3	BAHH000010	fb	Right
150	150	150	255	2	BAHH000019	fb	Left
150	150	150	255	3	BAHH000025	fb	Left
175	175	175	315	2	BAHH000005	fb	Right
175	175	175	315	3	BAHH000011	fb	Right
175	175	175	315	2	BAHH000020	fb	Left
175	175	175	315	3	BAHH000026	fb	Left
200	200	200	330	2	BAHH000006	fb	Right
200	200	200	330	3	BAHH000012	fb	Right
200	200	200	330	2	BAHH000021	fb	Left
200	200	200	330	3	BAHH000027	fb	Left
250	250	250	425	2	BAHH000007	fb	Right
250	250	250	425	3	BAHH000013	fb	Right
250	250	250	425	2	BAHH000022	fb	Left
250	250	250	425	3	BAHH000028	fb	Left
300	300	300	500	2	BAHH000008	fb	Right
300	300	300	500	3	BAHH000014	fb	Right
300	300	300	500	2	BAHH000023	fb	Left
300	300	300	500	3	BAHH000029	fb	Left
350	350	350	600	2	BAHH000009	fb	Right
350	350	350	600	3	BAHH000015	fb	Right
350	350	350	600	2	BAHH000024	fb	Left
350	350	350	600	3	BAHH000030	fb	Left

Price	Diameter	Diameter 2	Diameter 3	Length	Thickness	Item ID	Edge	Execution
€	Ød, mm	Ød, mm	Ød, mm	L, mm	s, mm
€371.10	100	100	100	175	2.00	BDHH000002	fb	Right
€371.10	100	100	100	175	2.00	BDHH000011	fb	Left
€411.40	120	120	120	215	2.00	BDHH000003	fb	Right
€411.40	120	120	120	215	2.00	BDHH000012	fb	Left
€453.70	150	150	150	255	2.00	BDHH000004	fb	Right
€453.70	150	150	150	255	2.00	BDHH000013	fb	Left
€607.40	175	175	175	315	2.00	BDHH000005	fb	Right
€607.40	175	175	175	315	2.00	BDHH000014	fb	Left
€763.10	200	200	200	330	2.00	BDHH000006	fb	Right
€763.10	200	200	200	330	2.00	BDHH000015	fb	Left
€1,051.40	250	250	250	425	2.00	BDHH000007	fb	Right
€1,051.40	250	250	250	425	2.00	BDHH000016	fb	Left
€1,356.90	300	300	300	500	2.00	BDHH000008	fb	Right
€1,356.90	300	300	300	500	2.00	BDHH000017	fb	Left
€2,292.90	350	350	350	600	2.00	BDHH000009	fb	Right
€2,292.90	350	350	350	600	2.00	BDHH000018	fb	Left

Price	Diameter	Diameter 2	Diameter 3	Length	Thickness	Item ID	Edge	Execution
€	Ød, mm	Ød, mm	Ød, mm	L, mm	s, mm
€757.30	100	100	100	175	2.00	BBHH000002	fb	Right
€757.30	100	100	100	175	2.00	BBHH000011	fb	Left
€836.20	120	120	120	215	2.00	BBHH000003	fb	Right
€836.20	120	120	120	215	2.00	BBHH000012	fb	Left
€1,053.30	150	150	150	255	2.00	BBHH000004	fb	Right
€1,053.30	150	150	150	255	2.00	BBHH000013	fb	Left
€1,330.10	175	175	175	315	2.00	BBHH000005	fb	Right
€1,330.10	175	175	175	315	2.00	BBHH000014	fb	Left
€1,549.20	200	200	200	330	2.00	BBHH000006	fb	Right
€1,549.20	200	200	200	330	2.00	BBHH000015	fb	Left
€2,075.80	250	250	250	425	2.00	BBHH000007	fb	Right
€2,075.80	250	250	250	425	2.00	BBHH000016	fb	Left
€2,491.00	300	300	300	500	2.00	BBHH000008	fb	Right
€2,491.00	300	300	300	500	2.00	BBHH000017	fb	Left
€4,028.40	350	350	350	600	2.00	BBHH000009	fb	Right
€4,028.40	350	350	350	600	2.00	BBHH000018	fb	Left
