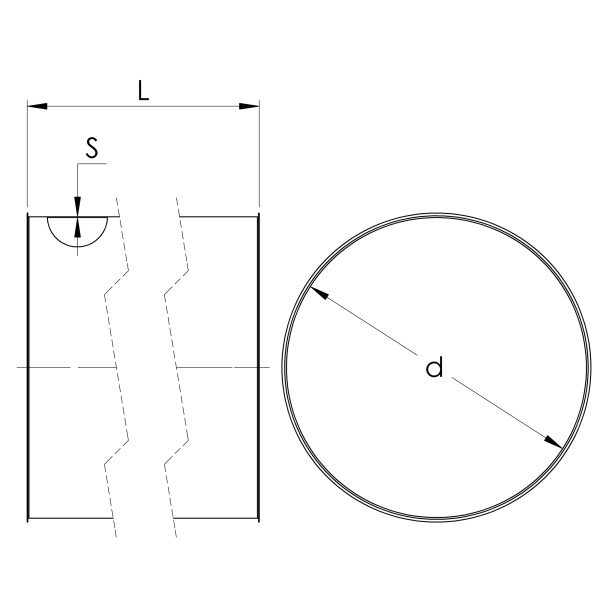

Laser welded pipe L=0.5m

Longitudinally laser welded pipes for use in overpressure, under-pressure and pressureless systems.

Product range

Diameter	Length	Thickness	Item ID	Edge
Ød, mm	L, mm	s, mm
80	490	0.75	AAAA000057	fb
100	490	0.75	AAAA000058	fb
120	490	0.75	AAAA000059	fb
125	490	0.75	AAAA000229	fb
140	490	0.75	AAAA000060	fb
150	490	0.75	AAAA000061	fb
160	490	0.75	AAAA000062	fb
180	490	0.75	AAAA000063	fb
200	490	0.75	AAAA000064	fb
225	490	0.75	AAAA000065	fb
250	490	0.75	AAAA000066	fb
275	490	0.75	AAAA000067	fb
280	490	0.75	AAAA000230	fb
300	490	0.75	AAAA000068	fb
315	490	0.88	AAAA000069	fb
350	490	0.88	AAAA000070	fb
400	490	0.88	AAAA000071	fb
450	490	0.88	AAAA000072	fb
500	490	0.88	AAAA000073	fb
550	490	1	AAAA000074	fb
600	490	1	AAAA000075	fb
630	490	1	AAAA000076	fb
650	490	1	AAAA000077	fb
700	490	1	AAAA000162	fb
750	490	1	AAAA000163	fb
800	490	1	AAAA000164	fb
850	490	1	AAAA000165	fb
900	490	1	AAAA000166	fb
950	490	1.25	AAAA000167	fb
1,000	490	1.25	AAAA000168	fb
80	490	0.75	AAAA000141	L.fl
100	490	0.75	AAAA000142	L.fl
120	490	0.75	AAAA000143	L.fl
125	490	0.75	AAAA000235	L.fl
140	490	0.75	AAAA000144	L.fl
150	490	0.75	AAAA000145	L.fl
160	490	0.75	AAAA000146	L.fl
180	490	0.75	AAAA000147	L.fl
200	490	0.75	AAAA000148	L.fl
225	490	0.75	AAAA000149	L.fl
250	490	0.75	AAAA000150	L.fl
275	490	0.75	AAAA000151	L.fl
280	490	0.75	AAAA000236	L.fl
300	490	0.75	AAAA000152	L.fl
315	490	0.88	AAAA000153	L.fl
350	490	0.88	AAAA000154	L.fl
400	490	0.88	AAAA000155	L.fl
450	490	0.88	AAAA000156	L.fl
500	490	0.88	AAAA000157	L.fl
550	490	1	AAAA000158	L.fl
600	490	1	AAAA000159	L.fl
630	490	1	AAAA000160	L.fl
650	490	1	AAAA000161	L.fl
700	490	1	AAAA000078	L.fl
750	490	1	AAAA000079	L.fl
800	490	1	AAAA000080	L.fl
850	490	1	AAAA000081	L.fl
900	490	1	AAAA000082	L.fl
950	490	1.25	AAAA000083	L.fl
1,000	490	1.25	AAAA000084	L.fl

Price	Diameter	Length	Thickness	Item ID	Edge
€	Ød, mm	L, mm	s, mm
€63.50	80	490	0.80	ABAA000035	fb
€67.10	100	490	0.80	ABAA000036	fb
€53.30	120	490	0.80	ABAA000037	fb
€97.10	125	494	0.80	ABAA000052	fb
€85.60	140	490	0.80	ABAA000038	fb
€87.40	150	490	0.80	ABAA000039	fb
€89.10	160	490	0.80	ABAA000040	fb
€92.00	180	490	0.80	ABAA000041	fb
€92.80	200	490	0.80	ABAA000042	fb
€96.10	225	490	0.80	ABAA000043	fb
€97.80	250	490	0.80	ABAA000044	fb
€111.60	275	490	0.80	ABAA000045	fb
€112.60	280	494	0.80	ABAA000053	fb
€115.70	300	490	0.80	ABAA000046	fb
€118.20	315	490	0.80	ABAA000047	fb
€124.20	350	490	0.80	ABAA000048	fb
€190.50	400	490	0.80	ABAA000049	fb
€140.70	450	490	0.80	ABAA000050	fb
€148.90	500	490	0.80	ABAA000051	fb
