HV Taper

Fully welded tapers completely airtight.They are attached to the pipe by means of pipe connectors.

Product range

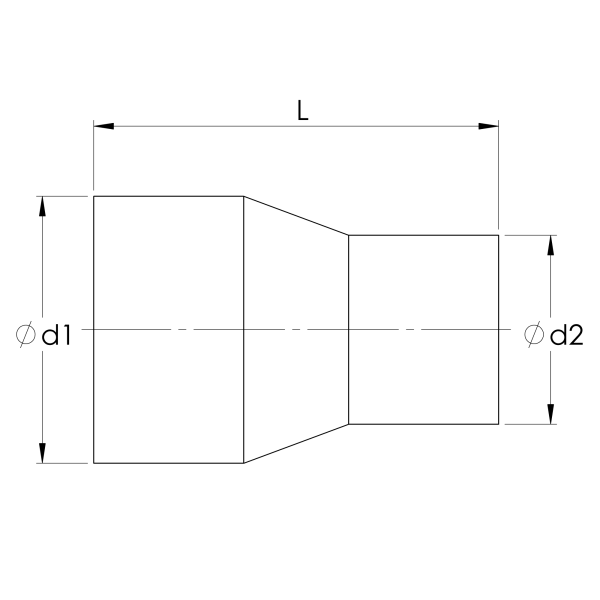

Diameter	Diameter 2	Length	Thickness	Item ID	Edge
Ød, mm	Ød, mm	L, mm	s, mm
50	38	120	1.5	CAEA000001	gl
63	50	165	1.5	CAEA000002	gl
76	50	165	1.5	CAEA000003	gl
76	63	170	1.5	CAEA000004	gl
89	76	150	1.5	CAEA000005	gl
89	63	135	1.5	CAEA000023	gl
102	63	170	1.5	CAEA000006	gl
102	76	170	1.5	CAEA000007	gl
102	89	150	2	CAEA000008	gl
114	102	170	1.5	CAEA000009	gl
127	50	250	1.25	CAEA000010	gl
127	63	250	1.25	CAEA000011	gl
127	76	250	1.5	CAEA000012	gl
127	102	170	2	CAEA000013	gl
152	76	250	1.5	CAEA000014	gl
152	102	250	2	CAEA000015	gl
152	127	250	2	CAEA000016	gl
203	50	250	1.25	CAEA000017	gl
203	63	250	1.25	CAEA000018	gl
203	76	250	1.5	CAEA000019	gl
203	102	250	1.5	CAEA000020	gl
203	127	250	1.5	CAEA000021	gl
203	152	250	2	CAEA000022	gl

Price	Diameter	Diameter 2	Length	Thickness	Item ID	Edge
€	Ød, mm	Ød, mm	L, mm	s, mm
€53.10	50	38	120	1.50	CBEA000001	gl
€55.20	63	50	165	1.50	CBEA000003	gl
€85.40	76	50	165	1.50	CBEA000004	gl
€87.60	76	63	170	1.50	CBEA000005	gl
€132.20	102	76	170	2.00	CBEA000006	gl
