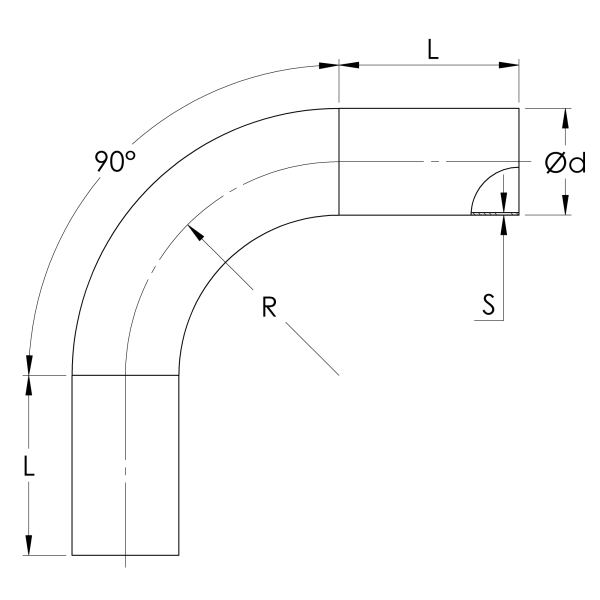

Longitudinally welded bends completely airtight available in 45º and 90º.
They are attached to the pipe by means of pipe connectors.
| Diameter | Length | Radius | Thickness | Item ID | Edge |
|---|---|---|---|---|---|
| Ød, mm | L, mm | R, mm | s, mm | ||
| 38 | 150 | R=75 | 1.5 | CABA000019 | gl |
| 50 | 150 | R=125 | 1.5 | CABA000001 | gl |
| 63 | 150 | R=157,5 | 1.5 | CABA000002 | gl |
| 76 | 150 | R=190 | 1.5 | CABA000003 | gl |
| 89 | 150 | R=178 | 2 | CABA000004 | gl |
| 102 | 170 | R=254 | 2 | CABA000005 | gl |
| 114 | 179 | R=207 | 2 | CABA000006 | gl |
| 127 | 170 | R=317,5 | 2 | CABA000007 | gl |
| 152 | 400 | R=305 | 2 | CABA000008 | gl |
| 203 | 100 | R=400 | 2 | CABA000009 | gl |
| Price | Diameter | Length | Radius | Thickness | Item ID | Edge |
|---|---|---|---|---|---|---|
| € | Ød, mm | L, mm | R, mm | s, mm | ||
| €40.90 | 50 | 150 | R=125 | 1.50 | CBBA000002 | gl |
| €45.10 | 63 | 150 | R=157,5 | 1.50 | CBBA000003 | gl |
| €53.70 | 76 | 150 | R=190 | 1.50 | CBBA000004 | gl |
| €78.30 | 102 | 170 | R=254 | 2.00 | CBBA000005 | gl |
Galva / Electrolized
AISI 304 / Polished
