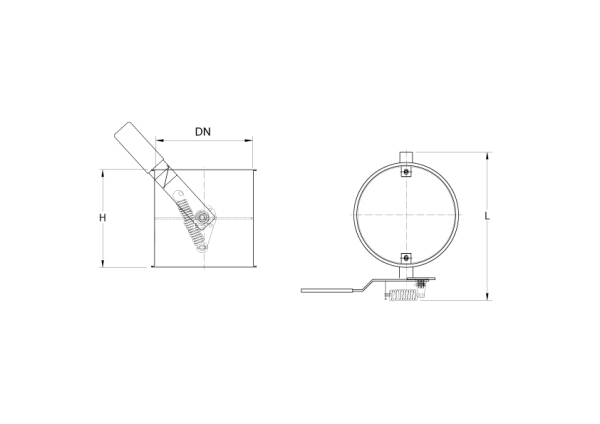

HG Manual throttle valve with spring

Name: HG Manual throttle valve with spring - Formula Air
SKU: BDDJ109

Full welded manual throttle valves to open or close a ducting line in an installation (no possibility to regulate).

The throttle valve blade stays in the desired position by the spring.

Product range

Diameter	Length	Thickness	Item ID	Edge
Ød, mm	L, mm	s, mm
80	80	1.5	BDDJ000039	fb
100	100	2	BDDJ000040	fb
120	120	2	BDDJ000041	fb
140	140	2	BDDJ000042	fb
150	150	2	BDDJ000043	fb
160	160	2	BDDJ000044	fb
175	175	2	BDDJ000045	fb
200	200	2	BDDJ000046	fb
224	224	2	BDDJ000047	fb
250	250	2	BDDJ000048	fb
280	280	2	BDDJ000049	fb
300	300	2	BDDJ000050	fb

Price	Diameter	Length	Thickness	Item ID	Edge
€	Ød, mm	L, mm	s, mm
€148.80	80	80	1.50	BADJ000059	fb
€178.10	100	100	2.00	BADJ000060	fb
€186.90	120	120	2.00	BADJ000061	fb
€190.20	140	140	2.00	BADJ000062	fb
€190.20	150	150	2.00	BADJ000063	fb
€231.10	160	160	2.00	BADJ000064	fb
€231.10	175	175	2.00	BADJ000065	fb
€253.40	200	200	2.00	BADJ000066	fb
€320.70	224	224	2.00	BADJ000067	fb
€320.70	250	250	2.00	BADJ000068	fb
€344.00	280	280	2.00	BADJ000069	fb
€344.00	300	300	2.00	BADJ000070	fb

Price	Diameter	Length	Thickness	Item ID	Edge
€	Ød, mm	L, mm	s, mm
€288.80	80	80	1.50	BBDJ000059	fb
€307.10	100	100	2.00	BBDJ000060	fb
€332.80	120	120	2.00	BBDJ000061	fb
€359.50	140	120	2.00	BBDJ000062	fb
€359.50	150	150	2.00	BBDJ000063	fb
€412.80	160	160	2.00	BBDJ000064	fb
€412.80	175	175	2.00	BBDJ000065	fb
€491.90	200	200	2.00	BBDJ000066	fb
€597.50	224	224	2.00	BBDJ000067	fb
€597.50	250	250	2.00	BBDJ000068	fb
€673.00	280	280	2.00	BBDJ000069	fb
€673.00	300	300	2.00	BBDJ000070	fb
