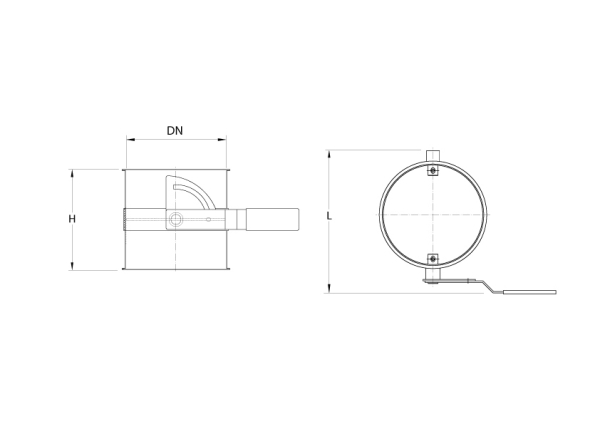

Full welded manual throttle valves with integrated silicone seal in the body to regulate or stop the airflow in an installation.
The throttle valve blade is locked in a desired position by thigthening the butterfly nut on the handle.
| Diameter | Length | Thickness | Item ID | Edge |
|---|---|---|---|---|
| Ød, mm | L, mm | s, mm | ||
| 80 | 80 | 1.5 | BADJ000038 | fb |
| 100 | 100 | 2 | BADJ000039 | fb |
| 120 | 120 | 2 | BADJ000040 | fb |
| 140 | 140 | 2 | BADJ000041 | fb |
| 150 | 150 | 2 | BADJ000042 | fb |
| 160 | 160 | 2 | BADJ000043 | fb |
| 175 | 175 | 2 | BADJ000044 | fb |
| 200 | 200 | 2 | BADJ000045 | fb |
| 224 | 200 | 2 | BADJ000046 | fb |
| 250 | 200 | 2 | BADJ000047 | fb |
| 280 | 200 | 2 | BADJ000048 | fb |
| 300 | 200 | 2 | BADJ000049 | fb |
| 315 | 200 | 2 | BADJ000050 | fb |
| 350 | 200 | 2 | BADJ000051 | fb |
| 400 | 200 | 2 | BADJ000052 | fb |
| Price | Diameter | Length | Thickness | Item ID | Edge |
|---|---|---|---|---|---|
| € | Ød, mm | L, mm | s, mm | ||
| €444.30 | 80 | 80 | 1.50 | BBDJ000038 | fb |
| €451.90 | 100 | 100 | 2.00 | BBDJ000039 | fb |
| €474.00 | 120 | 120 | 2.00 | BBDJ000040 | fb |
| €536.00 | 140 | 140 | 2.00 | BBDJ000041 | fb |
| €536.00 | 150 | 150 | 2.00 | BBDJ000042 | fb |
| €606.10 | 160 | 160 | 2.00 | BBDJ000043 | fb |
| €606.10 | 175 | 175 | 2.00 | BBDJ000044 | fb |
| €648.20 | 200 | 200 | 2.00 | BBDJ000045 | fb |
| €821.70 | 224 | 200 | 2.00 | BBDJ000046 | fb |
| €821.70 | 250 | 200 | 2.00 | BBDJ000047 | fb |
| €910.00 | 280 | 200 | 2.00 | BBDJ000048 | fb |
| €910.00 | 300 | 200 | 2.00 | BBDJ000049 | fb |
| €1,037.40 | 315 | 200 | 2.00 | BBDJ000050 | fb |
| €1,119.40 | 350 | 200 | 2.00 | BBDJ000051 | fb |
| €1,338.90 | 400 | 200 | 2.00 | BBDJ000052 | fb |
Black steel / Painted
AISI 304 / Chronital blasted
