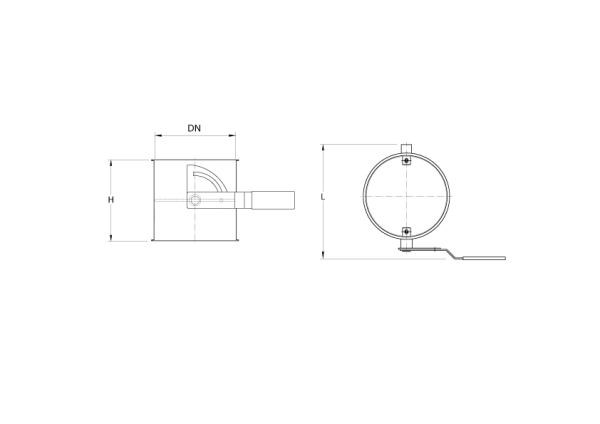

HG Manual throttle valve

Name: HG Manual throttle valve - Formula Air
SKU: BDDJ107

Full welded manual throttle valves to regulate the airflow in an installation.

The throttle valve blade is locked in a desired position by thigthening the butterfly nut on the handle.

Product range

Diameter	Length	Thickness	Item ID	Edge
Ød, mm	L, mm	s, mm
80	80	1.5	BDDJ000001	fb
100	100	1.5	BDDJ000002	fb
120	120	1.5	BDDJ000003	fb
140	140	1.5	BDDJ000004	fb
150	150	1.5	BDDJ000005	fb
160	160	1.5	BDDJ000006	fb
175	175	1.5	BDDJ000007	fb
200	200	1.5	BDDJ000008	fb
224	200	1.5	BDDJ000009	fb
250	200	1.5	BDDJ000010	fb
280	200	1.5	BDDJ000011	fb
300	200	1.5	BDDJ000012	fb
315	200	2	BDDJ000013	fb
350	200	2	BDDJ000014	fb
400	200	2	BDDJ000015	fb

Price	Diameter	Length	Thickness	Item ID	Edge
€	Ød, mm	L, mm	s, mm
€124.40	80	80	1.50	BADJ000001	fb
€132.30	100	100	1.50	BADJ000002	fb
€158.90	120	120	1.50	BADJ000003	fb
€175.80	140	140	1.50	BADJ000004	fb
€175.80	150	150	1.50	BADJ000005	fb
€200.50	160	160	1.50	BADJ000006	fb
€214.60	175	175	1.50	BADJ000007	fb
€232.90	200	200	1.50	BADJ000008	fb
€301.10	224	200	1.50	BADJ000009	fb
€301.10	250	200	1.50	BADJ000010	fb
€324.50	280	200	1.50	BADJ000011	fb
€330.60	300	200	1.50	BADJ000012	fb
€367.00	315	200	2.00	BADJ000029	fb
€377.80	350	200	2.00	BADJ000030	fb
€416.00	400	200	2.00	BADJ000031	fb

Price	Diameter	Length	Thickness	Item ID	Edge
€	Ød, mm	L, mm	s, mm
€261.80	80	80	1.50	BBDJ000001	fb
€287.60	100	100	1.50	BBDJ000002	fb
€307.60	100	100	2.00	BBDJ000018	fb
€310.90	120	120	1.50	BBDJ000003	fb
€332.60	120	120	2.00	BBDJ000019	fb
€358.50	140	140	1.50	BBDJ000004	fb
€383.60	140	140	2.00	BBDJ000020	fb
€358.50	150	150	1.50	BBDJ000005	fb
€383.60	150	150	2.00	BBDJ000021	fb
€399.70	160	160	1.50	BBDJ000006	fb
€427.50	160	160	2.00	BBDJ000022	fb
€406.40	175	175	1.50	BBDJ000007	fb
€434.50	175	175	2.00	BBDJ000023	fb
€493.60	200	200	1.50	BBDJ000008	fb
€527.80	200	200	2.00	BBDJ000024	fb
€595.90	224	200	1.50	BBDJ000009	fb
€637.40	224	200	2.00	BBDJ000025	fb
€595.90	250	200	1.50	BBDJ000010	fb
€637.40	250	200	2.00	BBDJ000026	fb
€676.60	280	200	1.50	BBDJ000011	fb
€707.80	280	200	2.00	BBDJ000027	fb
€676.60	300	200	1.50	BBDJ000012	fb
€707.80	300	200	2.00	BBDJ000028	fb
€719.30	315	200	2.00	BBDJ000029	fb
€719.30	350	200	2.00	BBDJ000030	fb
€840.40	400	200	2.00	BBDJ000031	fb
