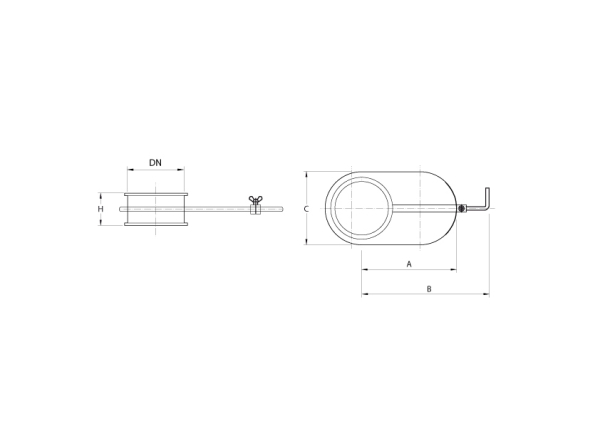

Full welded manual sliding dampers to regulate, open, or close a ducting line in an installation (possibility to regulate). The sliding damper blade is locked in a desired position by thigthening the butterfly nut on the handle. Not suitable for applications with bulk material. DN 315-500: bolted design.
| Diameter | Length | Thickness | Item ID | Edge |
|---|---|---|---|---|
| Ød, mm | L, mm | s, mm | ||
| 80 | 50 | 1.5 | BDDB000001 | fb |
| 100 | 58 | 1.5 | BDDB000002 | fb |
| 120 | 58 | 1.5 | BDDB000003 | fb |
| 140 | 70 | 1.5 | BDDB000004 | fb |
| 150 | 70 | 1.5 | BDDB000005 | fb |
| 160 | 70 | 1.5 | BDDB000006 | fb |
| 175 | 70 | 1.5 | BDDB000007 | fb |
| 200 | 70 | 1.5 | BDDB000008 | fb |
| 224 | 70 | 1.5 | BDDB000009 | fb |
| 250 | 70 | 1.5 | BDDB000010 | fb |
| 280 | 100 | 1.5 | BDDB000011 | fb |
| 300 | 100 | 2 | BDDB000012 | fb |
| 315 | 100 | 2 | BDDB000013 | fb |
| 350 | 100 | 2 | BDDB000014 | fb |
| 400 | 100 | 2 | BDDB000015 | fb |
| 450 | 100 | 2 | BDDB000016 | fb |
| 500 | 100 | 2 | BDDB000017 | fb |
| Price | Diameter | Length | Thickness | Item ID | Edge |
|---|---|---|---|---|---|
| € | Ød, mm | L, mm | s, mm | ||
| €92.80 | 80 | 50 | 1.50 | BADB000001 | fb |
| €92.80 | 100 | 58 | 1.50 | BADB000002 | fb |
| €98.50 | 120 | 58 | 1.50 | BADB000003 | fb |
| €133.70 | 140 | 70 | 1.50 | BADB000004 | fb |
| €133.70 | 150 | 70 | 1.50 | BADB000005 | fb |
| €237.00 | 160 | 70 | 1.50 | BADB000006 | fb |
| €237.00 | 175 | 70 | 1.50 | BADB000007 | fb |
| €246.30 | 200 | 70 | 1.50 | BADB000008 | fb |
| €287.30 | 224 | 70 | 1.50 | BADB000009 | fb |
| €287.30 | 250 | 70 | 1.50 | BADB000010 | fb |
| €321.70 | 280 | 100 | 1.50 | BADB000011 | fb |
| €321.10 | 300 | 100 | 2.00 | BADB000012 | fb |
| €538.10 | 315 | 100 | 2.00 | BADB000013 | fb |
| €549.00 | 350 | 100 | 2.00 | BADB000014 | fb |
| €707.80 | 400 | 100 | 2.00 | BADB000015 | fb |
| €846.30 | 450 | 100 | 2.00 | BADB000016 | fb |
| €980.30 | 500 | 100 | 2.00 | BADB000017 | fb |
| Price | Diameter | Length | Thickness | Item ID | Edge |
|---|---|---|---|---|---|
| € | Ød, mm | L, mm | s, mm | ||
| €235.20 | 80 | 50 | 1.50 | BBDB000001 | fb |
| €235.20 | 100 | 58 | 1.50 | BBDB000002 | fb |
| €244.40 | 120 | 58 | 1.50 | BBDB000003 | fb |
| €340.30 | 140 | 70 | 1.50 | BBDB000004 | fb |
| €340.30 | 150 | 70 | 1.50 | BBDB000005 | fb |
| €436.60 | 160 | 70 | 1.50 | BBDB000006 | fb |
| €436.60 | 175 | 70 | 1.50 | BBDB000007 | fb |
| €478.90 | 200 | 70 | 1.50 | BBDB000008 | fb |
| €594.20 | 224 | 70 | 1.50 | BBDB000009 | fb |
| €594.20 | 250 | 70 | 1.50 | BBDB000010 | fb |
| €665.70 | 280 | 100 | 1.50 | BBDB000011 | fb |
| €690.30 | 300 | 100 | 2.00 | BBDB000012 | fb |
| €820.80 | 315 | 100 | 2.00 | BBDB000013 | fb |
| €1,102.40 | 350 | 100 | 2.00 | BBDB000014 | fb |
| €1,303.00 | 400 | 100 | 2.00 | BBDB000015 | fb |
| €1,580.70 | 450 | 100 | 2.00 | BBDB000016 | fb |
| €1,764.80 | 500 | 100 | 2.00 | BBDB000017 | fb |
Black steel / Electrolized
Black steel / Painted
AISI 304 / Chronital blasted
