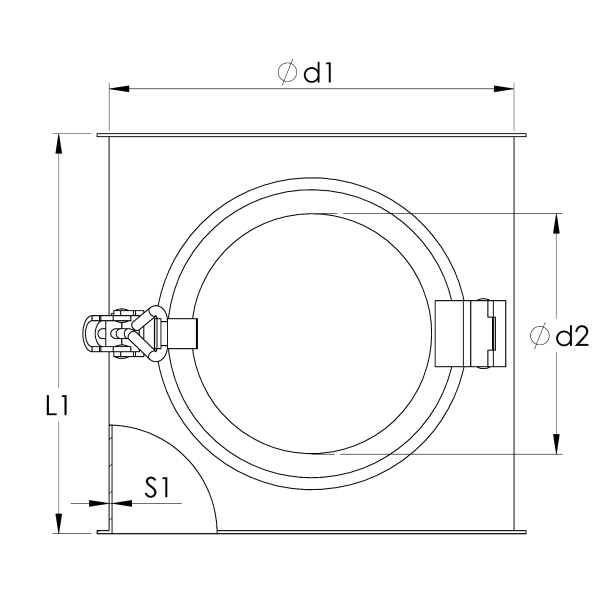

Full welded inspection pipes with round access door. The locking mechanism is threaded to regulated the stifness of the closing of the rapidlock handle. Airthightness is insured by a silicone seal all around the lip of the door.These inspection pipes are suitable for the transport of waste materials such as dust and chips but also for the transport of grains and such.
| Diameter | Length | Thickness | Item ID | Edge |
|---|---|---|---|---|
| Ød, mm | L, mm | s, mm | ||
| 80 | 200 | 1.5 | BDAC000001 | fb |
| 100 | 200 | 1.5 | BDAC000002 | fb |
| 120 | 200 | 1.5 | BDAC000003 | fb |
| 140 | 200 | 1.5 | BDAC000004 | fb |
| 150 | 200 | 1.5 | BDAC000005 | fb |
| 160 | 200 | 1.5 | BDAC000006 | fb |
| 175 | 200 | 1.5 | BDAC000007 | fb |
| 200 | 200 | 1.5 | BDAC000008 | fb |
| 224 | 200 | 1.5 | BDAC000009 | fb |
| 250 | 200 | 1.5 | BDAC000010 | fb |
| 280 | 200 | 1.5 | BDAC000011 | fb |
| 300 | 200 | 1.5 | BDAC000012 | fb |
| 315 | 200 | 1.5 | BDAC000013 | fb |
| 350 | 200 | 1.5 | BDAC000014 | fb |
| 400 | 200 | 1.5 | BDAC000015 | fb |
| Price | Diameter | Length | Thickness | Item ID | Edge |
|---|---|---|---|---|---|
| € | Ød, mm | L, mm | s, mm | ||
| €103.10 | 80 | 200 | 1.50 | BAAC000001 | fb |
| €103.10 | 100 | 200 | 1.50 | BAAC000002 | fb |
| €157.00 | 100 | 210 | 2.00 | BAAC000022 | fb |
| €108.00 | 120 | 200 | 1.50 | BAAC000003 | fb |
| €162.50 | 120 | 210 | 2.00 | BAAC000023 | fb |
| €112.30 | 140 | 200 | 1.50 | BAAC000004 | fb |
| €167.00 | 140 | 210 | 2.00 | BAAC000024 | fb |
| €112.30 | 150 | 200 | 1.50 | BAAC000005 | fb |
| €167.00 | 150 | 210 | 2.00 | BAAC000025 | fb |
| €178.60 | 150 | 210 | 3.00 | BAAC000042 | fb |
| €118.80 | 160 | 200 | 1.50 | BAAC000006 | fb |
| €170.20 | 160 | 210 | 2.00 | BAAC000026 | fb |
| €118.80 | 175 | 200 | 1.50 | BAAC000007 | fb |
| €170.20 | 175 | 210 | 2.00 | BAAC000027 | fb |
| €182.30 | 175 | 210 | 3.00 | BAAC000043 | fb |
| €122.30 | 200 | 200 | 1.50 | BAAC000008 | fb |
| €173.80 | 200 | 210 | 2.00 | BAAC000028 | fb |
| €187.90 | 200 | 210 | 3.00 | BAAC000044 | fb |
| €128.10 | 224 | 200 | 1.50 | BAAC000009 | fb |
| €177.70 | 224 | 210 | 2.00 | BAAC000029 | fb |
| €195.00 | 224 | 210 | 3.00 | BAAC000045 | fb |
| €128.10 | 250 | 200 | 1.50 | BAAC000010 | fb |
| €177.70 | 250 | 210 | 2.00 | BAAC000030 | fb |
| €195.00 | 250 | 210 | 3.00 | BAAC000046 | fb |
| €134.70 | 280 | 200 | 1.50 | BAAC000011 | fb |
| €184.60 | 280 | 210 | 2.00 | BAAC000031 | fb |
| €204.60 | 280 | 210 | 3.00 | BAAC000047 | fb |
| €134.60 | 300 | 200 | 1.50 | BAAC000012 | fb |
| €184.60 | 300 | 210 | 2.00 | BAAC000032 | fb |
| €204.60 | 300 | 210 | 3.00 | BAAC000048 | fb |
| €154.40 | 315 | 200 | 1.50 | BAAC000013 | fb |
| €191.30 | 315 | 210 | 2.00 | BAAC000033 | fb |
| €223.00 | 315 | 210 | 3.00 | BAAC000049 | fb |
| €173.30 | 350 | 200 | 1.50 | BAAC000014 | fb |
| €205.20 | 350 | 210 | 2.00 | BAAC000034 | fb |
| €234.00 | 350 | 210 | 3.00 | BAAC000050 | fb |
| €183.70 | 400 | 200 | 1.50 | BAAC000015 | fb |
| €209.60 | 400 | 210 | 2.00 | BAAC000035 | fb |
| €254.20 | 400 | 210 | 3.00 | BAAC000051 | fb |
| Price | Diameter | Length | Thickness | Item ID | Edge |
|---|---|---|---|---|---|
| € | Ød, mm | L, mm | s, mm | ||
| €199.40 | 80 | 200 | 1.50 | BBAC000001 | fb |
| €199.40 | 100 | 200 | 1.50 | BBAC000002 | fb |
| €244.80 | 100 | 200 | 2.00 | BBAC000022 | fb |
| €204.20 | 120 | 200 | 1.50 | BBAC000003 | fb |
| €251.50 | 120 | 200 | 2.00 | BBAC000023 | fb |
| €212.70 | 140 | 200 | 1.50 | BBAC000004 | fb |
| €259.00 | 140 | 200 | 2.00 | BBAC000024 | fb |
| €212.70 | 150 | 200 | 1.50 | BBAC000005 | fb |
| €259.00 | 150 | 200 | 2.00 | BBAC000025 | fb |
| €220.40 | 160 | 200 | 1.50 | BBAC000006 | fb |
| €269.50 | 160 | 200 | 2.00 | BBAC000026 | fb |
| €220.40 | 175 | 200 | 1.50 | BBAC000007 | fb |
| €269.50 | 175 | 200 | 2.00 | BBAC000027 | fb |
| €230.00 | 200 | 200 | 1.50 | BBAC000008 | fb |
| €280.50 | 200 | 200 | 2.00 | BBAC000028 | fb |
| €240.30 | 224 | 200 | 1.50 | BBAC000009 | fb |
| €306.20 | 224 | 200 | 2.00 | BBAC000029 | fb |
| €240.30 | 250 | 200 | 1.50 | BBAC000010 | fb |
| €306.20 | 250 | 200 | 2.00 | BBAC000030 | fb |
| €270.30 | 280 | 200 | 1.50 | BBAC000011 | fb |
| €339.00 | 280 | 200 | 2.00 | BBAC000031 | fb |
| €270.30 | 300 | 200 | 1.50 | BBAC000012 | fb |
| €339.00 | 300 | 200 | 2.00 | BBAC000032 | fb |
| €307.40 | 315 | 200 | 1.50 | BBAC000013 | fb |
| €368.70 | 315 | 200 | 2.00 | BBAC000033 | fb |
| €329.80 | 350 | 200 | 1.50 | BBAC000014 | fb |
| €394.90 | 350 | 200 | 2.00 | BBAC000034 | fb |
| €351.20 | 400 | 200 | 1.50 | BBAC000015 | fb |
| €447.70 | 400 | 200 | 2.00 | BBAC000035 | fb |
Black steel / Electrolized
Black steel / Painted
AISI 304 / Chronital blasted
