HG Heavy manual sliding damper

Full welded manual sliding dampers to regulate, open, or close a ducting line in an installation (possibility to regulate). The sliding damper blade is locked in a desired position by thigthening the butterfly nut on the handle.

These sliding dampers are suitable for the transport of waste materials such as dust and chips but also for the transport of grains and such.

Product range

DiameterLengthThicknessItem IDEdge
Ød, mmL, mms, mm
100702BADC000001fb
120702BADC000002fb
150702BADC000003fb
175702BADC000004fb
200702BADC000005fb
250702BADC000006fb
300702BADC000007fb
PriceDiameterLengthThicknessItem IDEdge
Ød, mmL, mms, mm
€310.50100702.00BBDC000001fb
€328.00120702.00BBDC000002fb
€414.80150702.00BBDC000003fb
€489.10175702.00BBDC000004fb
€526.00200702.00BBDC000005fb
€755.20250702.00BBDC000006fb
€827.50300702.00BBDC000007fb

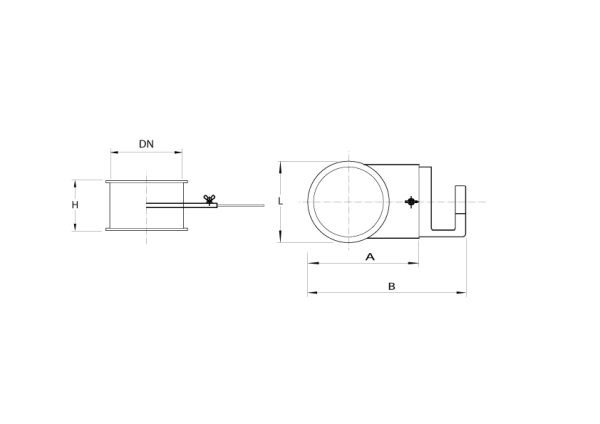

drawing
