For a quick and easy connection of the flexible hose into the leaf valves of an installation. Can be conbined with the CBDE SL leaf valves.
A hose ring is recommended to hold the flexible hose in place.

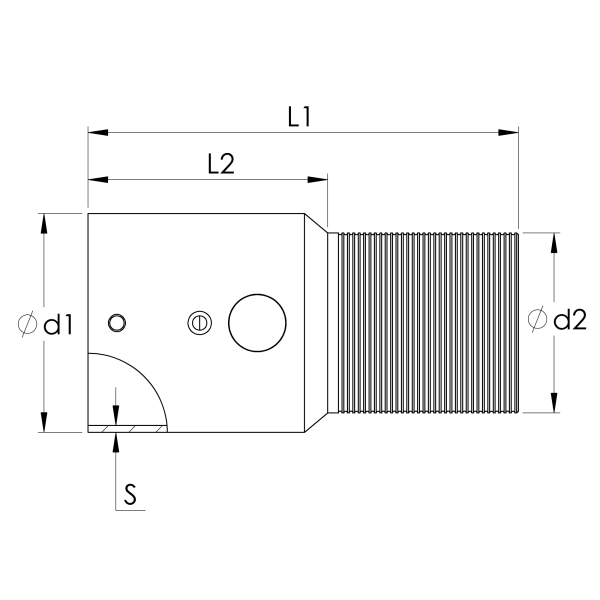

| Diameter | Diameter 2 | Length | Thickness | Item ID | Edge |
|---|---|---|---|---|---|
| Ød, mm | Ød, mm | L, mm | s, mm | ||
| 38 | 38 | 115 | 2 | CAEB000011 | gl |
| 50 | 38 | 120 | 2 | CAEB000012 | gl |
| 50 | 45 | 115 | 2 | CAEB000013 | gl |
| 50 | 50 | 115 | 2 | CAEB000014 | gl |
| 63 | 50 | 120 | 2 | CAEB000015 | gl |
| 63 | 63 | 120 | 2 | CAEB000016 | gl |
| 76 | 50 | 140 | 2 | CAEB000017 | gl |
| 76 | 63 | 140 | 2 | CAEB000018 | gl |
| 76 | 76 | 130 | 2 | CAEB000019 | gl |
| Price | Diameter | Diameter 2 | Length | Thickness | Item ID | Edge |
|---|---|---|---|---|---|---|
| € | Ød, mm | Ød, mm | L, mm | s, mm | ||
| €65.50 | 38 | 38 | 115 | 2.00 | CBEB000005 | gl |
| €79.70 | 50 | 38 | 120 | 2.00 | CBEB000006 | gl |
| €82.50 | 50 | 45 | 115 | 2.00 | CBEB000007 | gl |
| €86.00 | 50 | 50 | 115 | 2.00 | CBEB000008 | gl |
| €101.30 | 63 | 50 | 120 | 2.00 | CBEB000009 | gl |
| €103.70 | 63 | 63 | 120 | 2.00 | CBEB000010 | gl |
| €127.30 | 76 | 50 | 140 | 2.00 | CBEB000011 | gl |
| €127.30 | 76 | 63 | 140 | 2.00 | CBEB000012 | gl |
| €130.80 | 76 | 76 | 130 | 2.00 | CBEB000013 | gl |
Galva / Electrolized
AISI 304 / Untreated
