Blanking plates are designed to close off a line, for example at the end of a pipe or a branch that is not used.
To mount on a flanged ducting element.

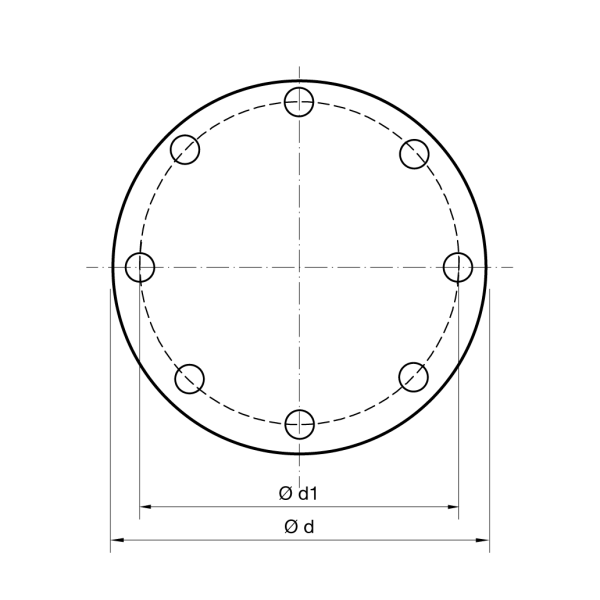

| Diameter | Thickness | Item ID |
|---|---|---|
| Ød, mm | s, mm | |
| 350 | 6 | BAZH000014 |
| 400 | 6 | BAZH000015 |
| 450 | 6 | BAZH000016 |
| 500 | 6 | BAZH000017 |
| 560 | 6 | BAZH000019 |
| 630 | 6 | BAZH000021 |
| Price | Diameter | Thickness | Item ID |
|---|---|---|---|
| € | Ød, mm | s, mm | |
| €46.20 | 80 | 3.00 | BBZH000001 |
| €49.30 | 100 | 3.00 | BBZH000002 |
| €53.60 | 120 | 3.00 | BBZH000003 |
| €57.70 | 140 | 3.00 | BBZH000004 |
| €61.60 | 150 | 3.00 | BBZH000005 |
| €63.70 | 160 | 3.00 | BBZH000006 |
| €68.00 | 175 | 3.00 | BBZH000007 |
| €73.40 | 200 | 3.00 | BBZH000008 |
| €76.20 | 224 | 3.00 | BBZH000009 |
| €79.30 | 250 | 3.00 | BBZH000010 |
| €85.60 | 280 | 3.00 | BBZH000011 |
| €112.20 | 300 | 3.00 | BBZH000012 |
| €116.10 | 315 | 3.00 | BBZH000013 |
| €295.10 | 350 | 6.00 | BBZH000022 |
| €360.90 | 400 | 6.00 | BBZH000023 |
| €435.10 | 450 | 6.00 | BBZH000024 |
| €510.40 | 500 | 6.00 | BBZH000025 |
| €654.30 | 560 | 6.00 | BBZH000027 |
| €791.80 | 630 | 6.00 | BBZH000029 |
Black steel / Painted
AISI 304 / Chronital blasted
