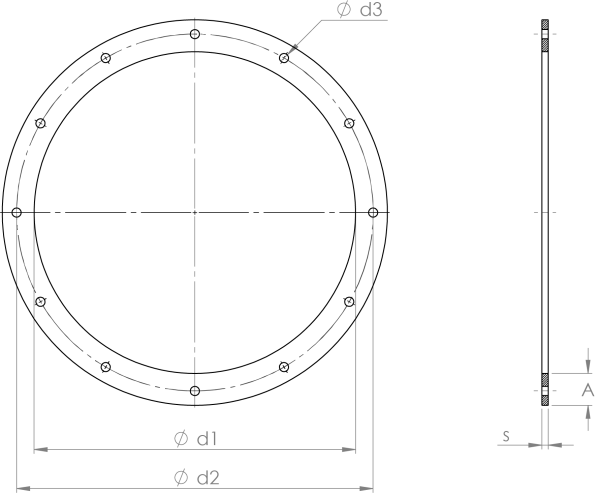

Galvanized flanges according to the DIN 24154 standard for the assembly of different ducting components. Model Riehe II (T2).
| Diameter | Thickness | Item ID |
|---|---|---|
| Ød, mm | s, mm | |
| 80 | 6 | GZBH000001 |
| 100 | 6 | GZBH000002 |
| 120 | 6 | GZBH000003 |
| 140 | 6 | GZBH000004 |
| 150 | 6 | GZBH000005 |
| 160 | 6 | GZBH000006 |
| 175 | 6 | GZBH000007 |
| 200 | 6 | GZBH000008 |
| 224 | 6 | GZBH000009 |
| 250 | 6 | GZBH000010 |
| 280 | 8 | GZBH000011 |
| 300 | 8 | GZBH000012 |
| 315 | 8 | GZBH000013 |
| 350 | 8 | GZBH000014 |
| 400 | 8 | GZBH000015 |
| 450 | 8 | GZBH000016 |
| 500 | 8 | GZBH000017 |
| 560 | 8 | GZBH000019 |
| 630 | 8 | GZBH000021 |
| Price | Diameter | Thickness | Item ID |
|---|---|---|---|
| € | Ød, mm | s, mm | |
| €19.80 | 80 | 6.00 | GABC000001 |
| €21.50 | 100 | 6.00 | GABC000002 |
| €23.50 | 120 | 6.00 | GABC000003 |
| €26.30 | 125 | 6.00 | GABC000004 |
| €27.20 | 140 | 6.00 | GABC000005 |
| €27.20 | 150 | 6.00 | GABC000006 |
| €28.80 | 160 | 6.00 | GABC000007 |
| €29.90 | 175 | 6.00 | GABC000008 |
| €30.70 | 180 | 6.00 | GABC000009 |
| €32.40 | 200 | 6.00 | GABC000010 |
| €34.10 | 224 | 6.00 | GABC000011 |
| €35.80 | 250 | 6.00 | GABC000012 |
| €52.30 | 275 | 8.00 | GABC000013 |
| €55.30 | 280 | 8.00 | GABC000014 |
| €54.70 | 300 | 8.00 | GABC000015 |
| €62.40 | 315 | 8.00 | GABC000016 |
| €65.70 | 350 | 8.00 | GABC000017 |
| €64.90 | 355 | 8.00 | GABC000018 |
| €66.50 | 400 | 8.00 | GABC000019 |
| €68.50 | 450 | 8.00 | GABC000020 |
| €69.40 | 500 | 8.00 | GABC000021 |
| €89.10 | 560 | 8.00 | GABC000023 |
| €115.70 | 600 | 8.00 | GABC000024 |
| €130.00 | 630 | 8.00 | GABC000025 |
| €153.20 | 710 | 8.00 | GABC000026 |
| €167.20 | 800 | 8.00 | GABC000027 |
| €188.40 | 900 | 8.00 | GABC000028 |
| €211.00 | 1,000 | 8.00 | GABC000029 |
| €402.40 | 1,250 | 8.00 | GABC000030 |
| Price | Diameter | Thickness | Item ID |
|---|---|---|---|
| € | Ød, mm | s, mm | |
| €51.80 | 80 | 6.00 | GBBC000001 |
| €54.70 | 100 | 6.00 | GBBC000002 |
| €58.00 | 120 | 6.00 | GBBC000003 |
| €66.40 | 140 | 6.00 | GBBC000004 |
| €66.40 | 150 | 6.00 | GBBC000005 |
| €73.00 | 160 | 6.00 | GBBC000006 |
| €73.00 | 175 | 6.00 | GBBC000007 |
| €83.90 | 200 | 6.00 | GBBC000008 |
| €98.70 | 224 | 6.00 | GBBC000009 |
| €98.70 | 250 | 6.00 | GBBC000010 |
| €135.60 | 280 | 8.00 | GBBC000011 |
| €135.60 | 300 | 8.00 | GBBC000012 |
| €149.90 | 315 | 8.00 | GBBC000013 |
| €149.90 | 350 | 8.00 | GBBC000022 |
| €169.40 | 400 | 8.00 | GBBC000015 |
| €181.00 | 450 | 8.00 | GBBC000016 |
| €190.60 | 500 | 8.00 | GBBC000017 |
| €300.50 | 560 | 8.00 | GBBC000019 |
| €231.80 | 600 | 8.00 | GBBC000020 |
| €319.40 | 630 | 8.00 | GBBC000021 |
Black steel / Painted
Galva / Hot-dipped
AISI 304 / Chronital blasted
