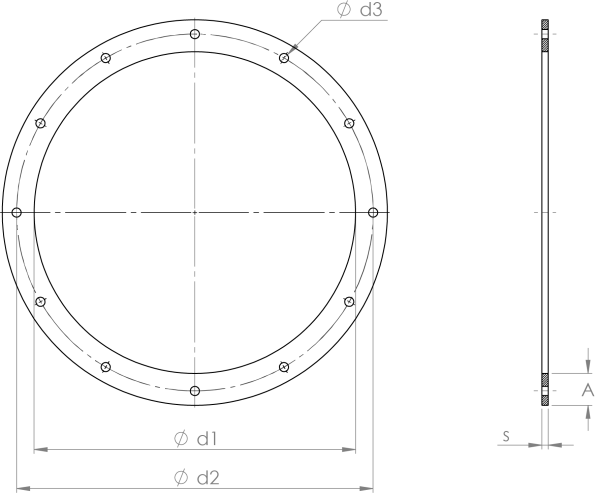

Galvanized flanges for the assembly of different ducting components.
| Diameter | Thickness | Item ID |
|---|---|---|
| Ød, mm | s, mm | |
| 80 | 3 | GABA000001 |
| 100 | 3 | GABA000002 |
| 120 | 3 | GABA000003 |
| 125 | 3 | GABA000030 |
| 140 | 3 | GABA000004 |
| 150 | 5 | GABA000005 |
| 160 | 5 | GABA000006 |
| 180 | 5 | GABA000007 |
| 200 | 5 | GABA000008 |
| 225 | 5 | GABA000009 |
| 250 | 5 | GABA000010 |
| 275 | 5 | GABA000011 |
| 280 | 5 | GABA000031 |
| 300 | 5 | GABA000012 |
| 315 | 5 | GABA000013 |
| 350 | 6 | GABA000014 |
| 400 | 6 | GABA000015 |
| 450 | 6 | GABA000016 |
| 500 | 6 | GABA000017 |
| 550 | 6 | GABA000018 |
| 600 | 6 | GABA000019 |
| 630 | 6 | GABA000020 |
| 650 | 6 | GABA000021 |
| 700 | 6 | GABA000022 |
| 750 | 6 | GABA000023 |
| 800 | 6 | GABA000024 |
| 850 | 6 | GABA000025 |
| 900 | 6 | GABA000026 |
| 950 | 6 | GABA000027 |
| 1,000 | 6 | GABA000028 |
| 1,250 | 6 | GABA000029 |
| Price | Diameter | Thickness | Item ID |
|---|---|---|---|
| € | Ød, mm | s, mm | |
| €34.30 | 80 | 3.00 | GBBA000001 |
| €41.20 | 100 | 3.00 | GBBA000002 |
| €44.80 | 120 | 3.00 | GBBA000003 |
| €54.50 | 140 | 3.00 | GBBA000004 |
| €55.20 | 150 | 5.00 | GBBA000005 |
| €55.50 | 160 | 5.00 | GBBA000006 |
| €57.80 | 180 | 5.00 | GBBA000007 |
| €63.80 | 200 | 5.00 | GBBA000008 |
| €64.50 | 225 | 5.00 | GBBA000009 |
| €70.20 | 250 | 5.00 | GBBA000010 |
| €75.30 | 275 | 5.00 | GBBA000011 |
| €75.30 | 300 | 5.00 | GBBA000012 |
| €76.30 | 315 | 5.00 | GBBA000013 |
| €108.10 | 350 | 6.00 | GBBA000014 |
| €109.00 | 400 | 6.00 | GBBA000015 |
| €121.00 | 450 | 6.00 | GBBA000016 |
| €136.80 | 500 | 6.00 | GBBA000017 |
| €137.50 | 550 | 6.00 | GBBA000018 |
| €159.50 | 600 | 6.00 | GBBA000019 |
| €164.70 | 630 | 6.00 | GBBA000020 |
| €168.20 | 650 | 6.00 | GBBA000021 |
| €242.70 | 700 | 6.00 | GBBA000022 |
| €244.50 | 750 | 6.00 | GBBA000023 |
| €246.00 | 800 | 6.00 | GBBA000024 |
| €280.10 | 850 | 6.00 | GBBA000025 |
| €282.50 | 900 | 6.00 | GBBA000026 |
| €283.70 | 950 | 6.00 | GBBA000027 |
| €323.50 | 1,000 | 6.00 | GBBA000028 |
Galva / Hot-dipped
AISI 304 / Pickled & passivated
