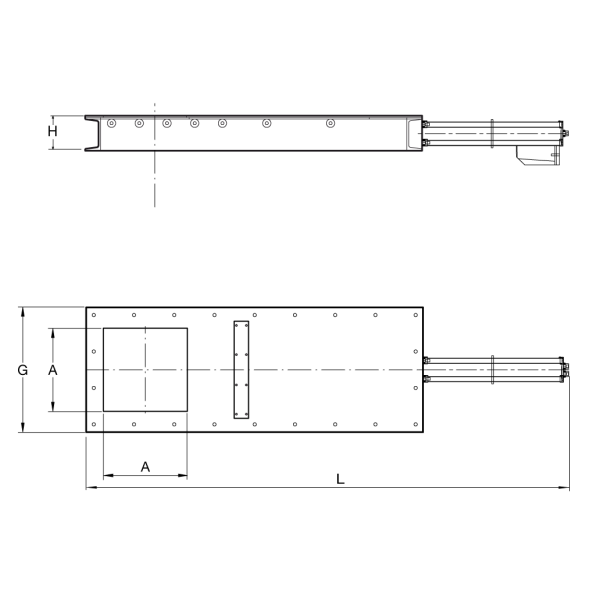

Full welded electric silo outlet gates to discharge material from a cyclone, a silo, or such. The outlet gate blade is secured in an open or closed position by means of the electric worm gear drive motor 0.18 kW, 230/400 V AC 50/60 Hz foreseen with limit switches.
| Diameter | Length | Item ID |
|---|---|---|
| Ød, mm | L, mm | |
| 150 | 126 | BADR000010 |
| 175 | 126 | BADR000011 |
| 200 | 126 | BADR000012 |
| 250 | 126 | BADR000013 |
| 300 | 126 | BADR000014 |
| Price | Diameter | Length | Item ID |
|---|---|---|---|
| € | Ød, mm | L, mm | |
| €4,243.70 | 150 | 126 | BDDR000010 |
| €4,330.10 | 175 | 126 | BDDR000011 |
| €4,368.70 | 200 | 126 | BDDR000012 |
| €4,474.40 | 250 | 126 | BDDR000013 |
| €4,743.40 | 300 | 126 | BDDR000014 |
| Price | Diameter | Length | Item ID |
|---|---|---|---|
| € | Ød, mm | L, mm | |
| €5,141.30 | 150 | 126 | BBDR000010 |
| €5,237.30 | 175 | 126 | BBDR000011 |
| €5,283.50 | 200 | 126 | BBDR000012 |
| €5,421.90 | 250 | 126 | BBDR000013 |
| €5,831.20 | 300 | 126 | BBDR000014 |
Black steel / Painted
Black steel / Hot-dipped
AISI 304 / Chronital blasted
