Connection stub

Name: Connection stub - Formula Air
SKU: BAZK155

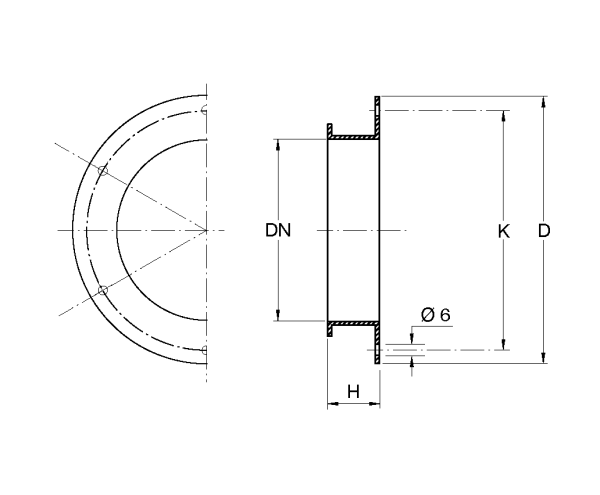

Full welded connection stubs with welded flange designed for the transition between different ducting elements or machinery.

These connection stubs are suitable for the transport of waste materials such as dust and chips but also for the transport of grains and such.

Product range

Diameter	Length	Thickness	Item ID	Edge	Edge 2
Ød, mm	L, mm	s, mm
80	35	1.5	BAZK000001	fb	W.fl
100	28	1.5	BAZK000002	fb	W.fl
100	28	2	BAZK000009	fb	W.fl
120	28	1.5	BAZK000003	fb	W.fl
120	28	2	BAZK000010	fb	W.fl
150	36	1.5	BAZK000004	fb	W.fl
150	36	2	BAZK000011	fb	W.fl
175	40	1.5	BAZK000005	fb	W.fl
175	40	2	BAZK000012	fb	W.fl
200	40	1.5	BAZK000006	fb	W.fl
200	40	2	BAZK000013	fb	W.fl
250	46	1.5	BAZK000007	fb	W.fl
250	46	2	BAZK000014	fb	W.fl
300	50	1.5	BAZK000008	fb	W.fl
300	50	2	BAZK000015	fb	W.fl

Price	Diameter	Length	Thickness	Item ID	Edge	Edge 2
€	Ød, mm	L, mm	s, mm
€18.90	80	35	1.50	BDZK000001	fb	W.fl
€18.90	100	28	1.50	BDZK000002	fb	W.fl
€37.20	100	28	2.00	BDZK000009	fb	W.fl
€19.70	120	28	1.50	BDZK000003	fb	W.fl
€39.30	120	28	2.00	BDZK000010	fb	W.fl
€28.60	150	36	1.50	BDZK000004	fb	W.fl
€56.80	150	36	2.00	BDZK000011	fb	W.fl
€41.30	175	40	1.50	BDZK000005	fb	W.fl
€62.90	175	40	2.00	BDZK000012	fb	W.fl
€45.30	200	40	1.50	BDZK000006	fb	W.fl
€71.80	200	40	2.00	BDZK000013	fb	W.fl
€52.00	250	46	1.50	BDZK000007	fb	W.fl
€84.30	250	46	2.00	BDZK000014	fb	W.fl
€88.10	300	50	1.50	BDZK000008	fb	W.fl
€104.00	300	50	2.00	BDZK000015	fb	W.fl

Price	Diameter	Length	Thickness	Item ID	Edge	Edge 2
€	Ød, mm	L, mm	s, mm
€52.60	80	35	1.50	BBZK000001	fb	W.fl
€52.60	100	28	1.50	BBZK000002	fb	W.fl
€74.90	100	28	2.00	BBZK000009	fb	W.fl
€60.30	120	28	1.50	BBZK000003	fb	W.fl
€86.00	120	28	2.00	BBZK000010	fb	W.fl
€73.30	150	36	1.50	BBZK000004	fb	W.fl
€95.10	150	36	2.00	BBZK000011	fb	W.fl
€90.40	175	40	1.50	BBZK000005	fb	W.fl
€105.20	175	40	2.00	BBZK000012	fb	W.fl
€108.00	200	40	1.50	BBZK000006	fb	W.fl
€120.20	200	40	2.00	BBZK000013	fb	W.fl
€131.00	250	46	1.50	BBZK000007	fb	W.fl
€142.50	250	46	2.00	BBZK000014	fb	W.fl
€198.50	300	50	1.50	BBZK000008	fb	W.fl
€214.60	300	50	2.00	BBZK000015	fb	W.fl
