Cleaning pipe

Name: Cleaning pipe - Formula Air
SKU: BDAG081

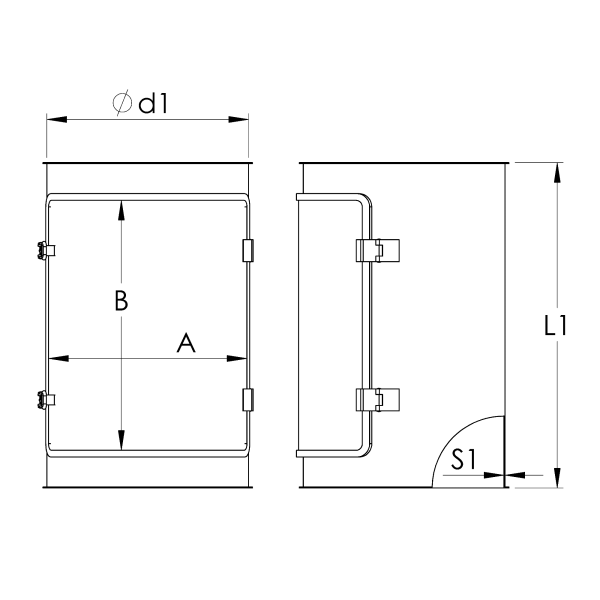

Cleaning pipes are longitudinally welded. Airthightness is insured by a silicone seal all around the lip of the door.

The inspection door is always produced with an inner plate for a smooth inner surface inside the pipe.

Product range

Diameter	Length	Thickness	Item ID	Edge
Ød, mm	L, mm	s, mm
150	488	1.5	BDAG000001	fb
160	488	1.5	BDAG000002	fb
175	488	1.5	BDAG000003	fb
200	488	1.5	BDAG000004	fb
224	488	1.5	BDAG000005	fb
250	488	1.5	BDAG000006	fb
280	488	1.5	BDAG000007	fb
300	488	1.5	BDAG000008	fb
315	488	1.5	BDAG000009	fb
350	488	1.5	BDAG000010	fb

Price	Diameter	Length	Thickness	Item ID	Edge
€	Ød, mm	L, mm	s, mm
€314.10	150	488	1.50	BAAG000001	fb
€340.10	150	488	2.00	BAAG000012	fb
€391.00	150	488	3.00	BAAG000029	fb
€318.80	160	488	1.50	BAAG000002	fb
€343.90	160	488	2.00	BAAG000013	fb
€318.80	175	488	1.50	BAAG000003	fb
€343.90	175	488	2.00	BAAG000014	fb
€395.40	175	488	3.00	BAAG000030	fb
€322.10	200	488	1.50	BAAG000004	fb
€347.80	200	488	2.00	BAAG000015	fb
€399.80	200	488	3.00	BAAG000031	fb
€346.00	224	488	1.50	BAAG000005	fb
€362.20	224	488	2.00	BAAG000016	fb
€416.40	224	488	3.00	BAAG000032	fb
€346.00	250	488	1.50	BAAG000006	fb
€362.20	250	488	2.00	BAAG000017	fb
€416.40	250	488	3.00	BAAG000033	fb
€369.10	280	488	1.50	BAAG000007	fb
€373.20	280	488	2.00	BAAG000018	fb
€429.10	280	488	3.00	BAAG000034	fb
€369.10	300	488	1.50	BAAG000008	fb
€373.20	300	488	2.00	BAAG000019	fb
€429.10	300	488	3.00	BAAG000035	fb
€377.80	315	488	1.50	BAAG000009	fb
€382.00	315	488	2.00	BAAG000020	fb
€439.50	315	488	3.00	BAAG000036	fb
€390.60	350	488	1.50	BAAG000010	fb
€395.00	350	488	2.00	BAAG000021	fb
€454.40	350	488	3.00	BAAG000037	fb
€437.80	400	488	1.50	BAAG000011	fb
€442.80	400	488	2.00	BAAG000022	fb
€509.30	400	488	3.00	BAAG000038	fb
€452.80	450	488	2.00	BAAG000023	fb
€520.50	450	488	3.00	BAAG000039	fb
€486.70	500	488	2.00	BAAG000024	fb
€559.80	500	488	3.00	BAAG000040	fb
€520.70	560	488	2.00	BAAG000026	fb
€599.20	560	488	3.00	BAAG000042	fb
€563.40	630	488	2.00	BAAG000028	fb
€647.90	630	488	3.00	BAAG000044	fb

Price	Diameter	Length	Thickness	Item ID	Edge
€	Ød, mm	L, mm	s, mm
€511.90	150	488	1.50	BBAG000001	fb
€549.40	150	488	2.00	BBAG000012	fb
€525.00	160	488	1.50	BBAG000002	fb
€562.90	160	488	2.00	BBAG000013	fb
€525.00	175	488	1.50	BBAG000003	fb
€562.90	175	488	2.00	BBAG000014	fb
€559.00	200	488	1.50	BBAG000004	fb
€576.90	200	488	2.00	BBAG000015	fb
€600.50	224	488	1.50	BBAG000005	fb
€618.60	224	488	2.00	BBAG000016	fb
€600.50	250	488	1.50	BBAG000006	fb
€618.60	250	488	2.00	BBAG000017	fb
€636.60	280	488	1.50	BBAG000007	fb
€656.90	280	488	2.00	BBAG000018	fb
€636.60	300	488	1.50	BBAG000008	fb
€656.90	300	488	2.00	BBAG000019	fb
€658.80	315	488	1.50	BBAG000009	fb
€680.70	315	488	2.00	BBAG000020	fb
€676.80	350	488	1.50	BBAG000010	fb
€696.60	350	488	2.00	BBAG000021	fb
€711.80	400	488	1.50	BBAG000011	fb
€732.00	400	488	2.00	BBAG000022	fb
€771.30	450	488	2.00	BBAG000023	fb
€825.80	500	488	2.00	BBAG000024	fb
€884.00	560	488	2.00	BBAG000026	fb
€957.90	630	488	2.00	BBAG000028	fb
