Blanking plates are standard made out of Sendzimir plate and are used to close a duct, for example at the end of a ducting system or on a branch that is not being used for use in overpressure, under-pressure and pressureless systems.It is held in place by a ring (sold separately).

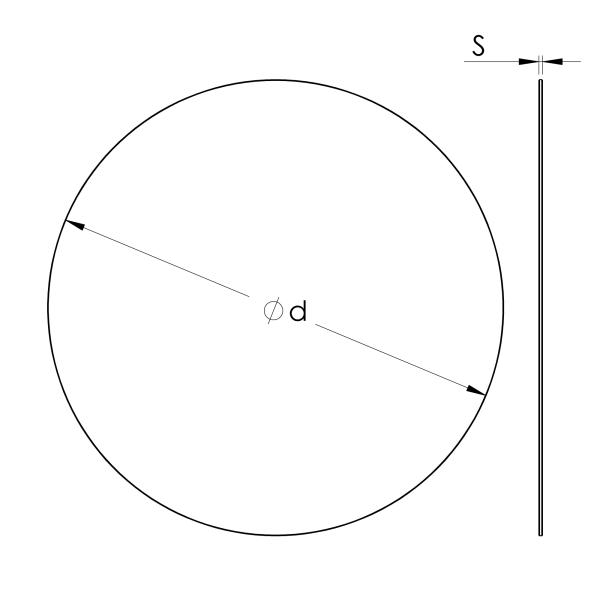

| Diameter | Thickness | Item ID |
|---|---|---|
| Ød, mm | s, mm | |
| 80 | 0.88 | AAZB000001 |
| 100 | 0.88 | AAZB000002 |
| 120 | 0.88 | AAZB000003 |
| 125 | 0.88 | AAZB000021 |
| 140 | 0.88 | AAZB000004 |
| 150 | 0.88 | AAZB000005 |
| 160 | 0.88 | AAZB000006 |
| 180 | 0.88 | AAZB000007 |
| 200 | 0.88 | AAZB000008 |
| 225 | 0.88 | AAZB000009 |
| 250 | 0.88 | AAZB000010 |
| 275 | 0.88 | AAZB000011 |
| 280 | 0.88 | AAZB000022 |
| 300 | 0.88 | AAZB000012 |
| 315 | 0.88 | AAZB000013 |
| 350 | 0.88 | AAZB000014 |
| 400 | 0.88 | AAZB000015 |
| 450 | 0.88 | AAZB000016 |
| 500 | 0.88 | AAZB000017 |
| 550 | 0.88 | AAZB000018 |
| 600 | 0.88 | AAZB000019 |
| 630 | 0.88 | AAZB000020 |
| Price | Diameter | Thickness | Item ID |
|---|---|---|---|
| € | Ød, mm | s, mm | |
| €10.80 | 80 | 0.80 | ABZB000001 |
| €10.80 | 100 | 0.80 | ABZB000002 |
| €10.80 | 120 | 0.80 | ABZB000003 |
| €10.80 | 125 | 0.80 | ABZB000021 |
| €16.00 | 140 | 0.80 | ABZB000004 |
| €16.00 | 150 | 0.80 | ABZB000005 |
| €16.00 | 160 | 0.80 | ABZB000006 |
| €21.90 | 180 | 0.80 | ABZB000007 |
| €21.90 | 200 | 0.80 | ABZB000008 |
| €21.90 | 225 | 0.80 | ABZB000009 |
| €25.90 | 250 | 0.80 | ABZB000010 |
| €25.90 | 275 | 0.80 | ABZB000011 |
| €25.90 | 280 | 0.80 | ABZB000022 |
| €33.90 | 300 | 0.80 | ABZB000012 |
| €33.90 | 315 | 0.80 | ABZB000013 |
| €33.90 | 350 | 0.80 | ABZB000014 |
| €37.80 | 400 | 0.80 | ABZB000015 |
| €37.80 | 450 | 0.80 | ABZB000016 |
| €41.80 | 500 | 0.80 | ABZB000017 |
| €41.80 | 550 | 0.80 | ABZB000018 |
| €49.80 | 600 | 0.80 | ABZB000019 |
| €61.70 | 630 | 0.80 | ABZB000020 |
Galva / Untreated
AISI 304 / Untreated
